GO-SPEX100 자체 암실형 배광기 PKG 타입

Integrated Darkroom Design. Perfect Solution of Luminous Intensity&Spatial Color Distribution Test

특징: 별도의 암실 구성이 필요하지 않음

목록보기

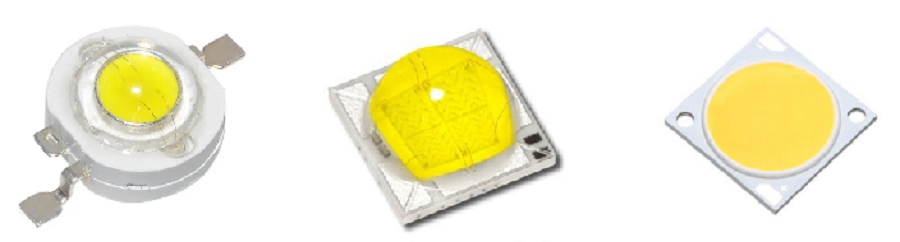

Typical Application Scenarios

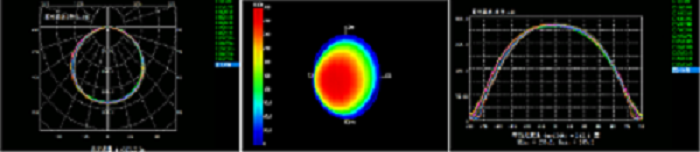

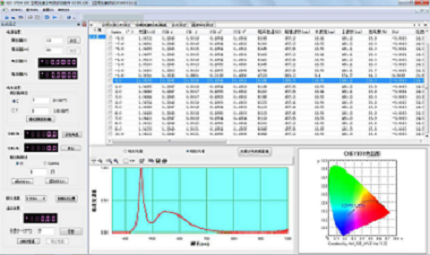

GO-SPEX100 delivers photmetric, colorimetric, electrical comprehensive test function for LEDs, and built-in precision temperature control platform,not only for measuring the specific temperature of the photometric and colorimetric parameters of LED, but also to measure the characteristics curve of its photometric and colorimetric performance with temperature. The test parameters include: spatial luminous intensity distribution curve, luminous flux, spatial spectral distribution, relative spectrum, absolute spectrum, color parameter, forward current and forward voltage, etc.

Main Characteristics

1. Comply with CIE Pub. No.127 A/B Conditions

CIEpub.No.127 Condition A, condition B and 1 meter standard test distance can be provided to achieve accurate testing of LED spatial luminous intensity and spatial spectral distribution, and analyze and obtain various parameters.

2. Integrated Darkroom Design

The unique design of the integrated darkroom can effectively save laboratory space and reduce customer laboratory costs while meeting the standard requirements.

3. Built-in Temperature Control Platform

The Built-in temperature control platform: precise temperature control to obtain LED photometric-colorimetric-electrical performance changed with temperature, providing guidance data for LED design applications.

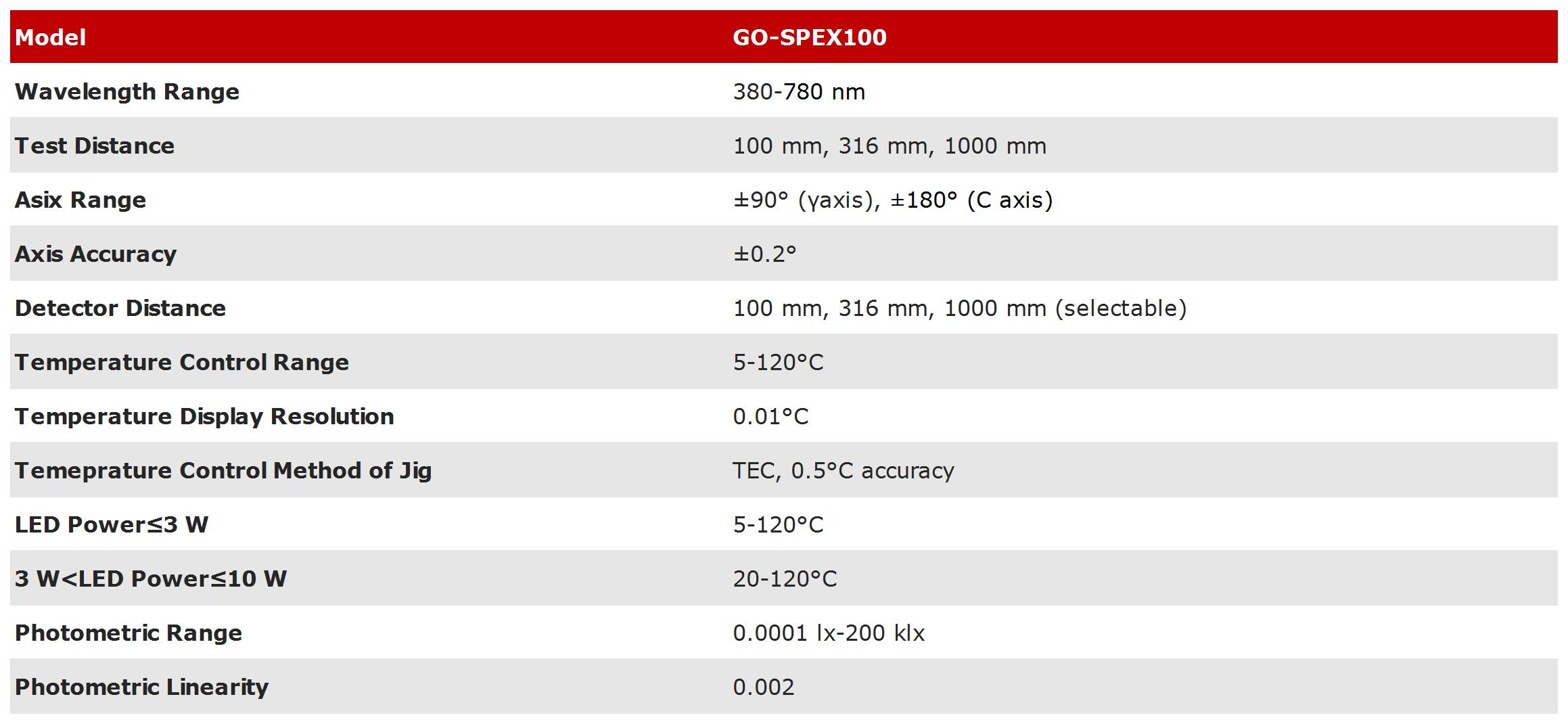

Technical Specifications
