LED626/620 PKG 타입 배광기

Integrated design, precision LED mechanical positioning

목록보기

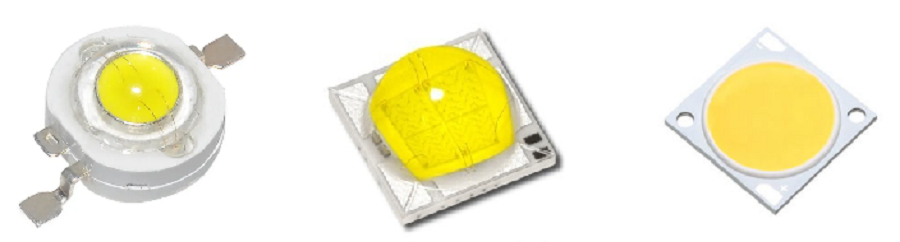

Typical Application Scenarios

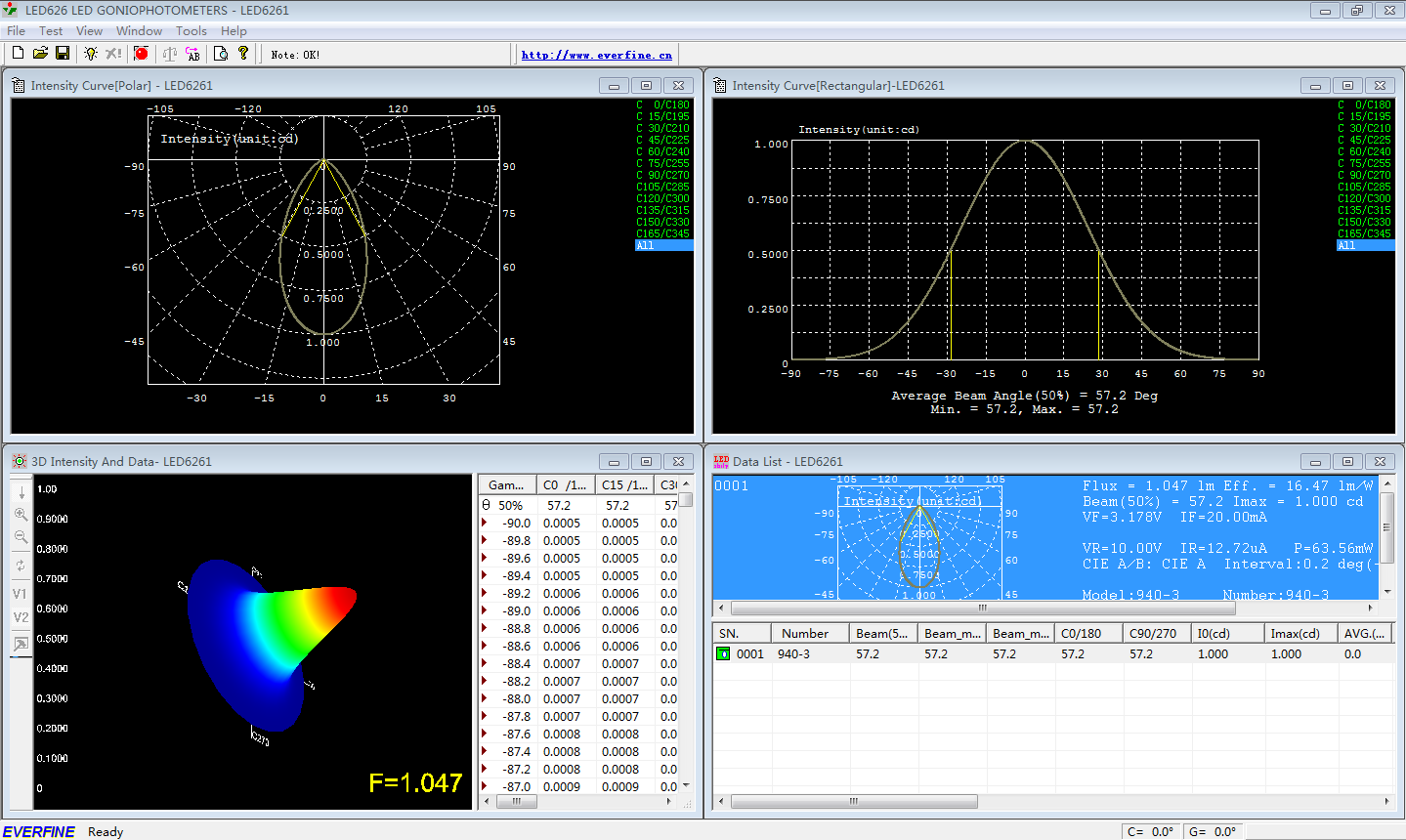

It can measure the luminous intensity data and automatically plot the luminous intensity distribution curve and luminous flux, and the test conditions meet the CIE condition A (far field) or condition B (near field).In addition, the software can provide customers with 3D luminous intensity distribution graphic.

Main Characteristics

1. Comply with CIE Pub. No.127 A/B Conditions

The test conditions fully meets CIE pub.No.127 Condition A or B. A national standard level photometer with a light area of 1cm² is used, with reference to the latest ISO/CIE international standard requirements.

2. High Accuracy Measurement & Positioning

Using a number of EVERFINE goniophotometer patent technology, with precision LED mechanical positioning device and integrated design center alignment system, the data measurement accuracy is very high.

3. IR/UV Photometer Optional

Different photometer can be selected to measure the radiation intensity distribution curve of infrared LED and ultraviolet LED.

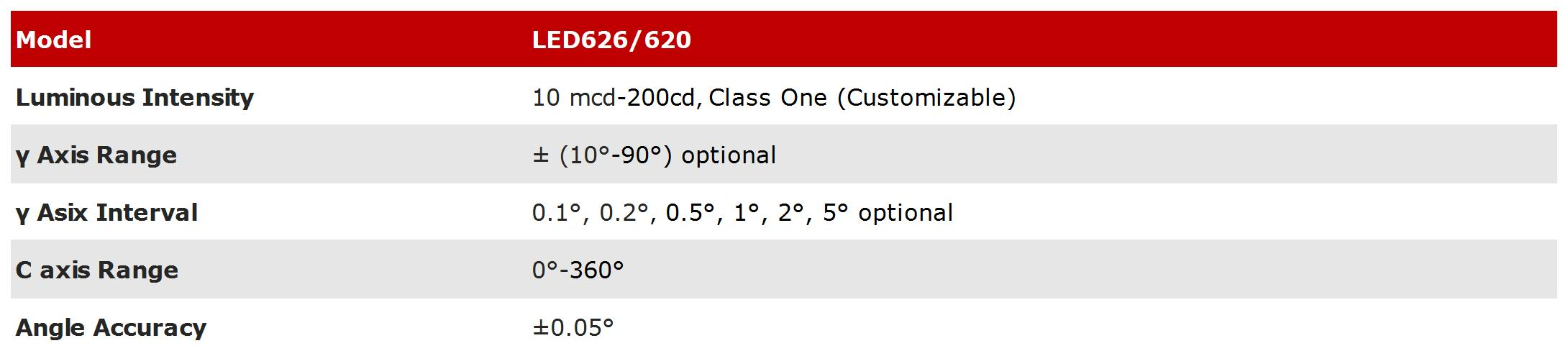

Technical Specifications
