PMS-2000 UV-VIS-near IR Spectrophotocolorimeter (Scientific Grade)

Double-monochromator Based Spectroradiometer with Extremely High Accuracy

파장범위: 200nm ~ 800nm

파장정확도: 0.2nm

색온도범위: 1000K ~ 100,000K

목록보기

Typical Application Scenarios

PMS-2000, with extremely low stray light and greatly high wavelength accuracy, is trusted by high-end laboratories and scientific research institutions. It not only realizes the high-accuracy test of various light sources and fluorescent materials such as LED, energy-saving lamps, halogen lamps, but also be applied to various professional measurement systems, which are widely used in the fields of photobiosafety, medical devices, ultraviolet, infrared, printing, coatings and so on.

Main Characteristics

1. Perfect Stray Light Control and Wavelength Accuracy

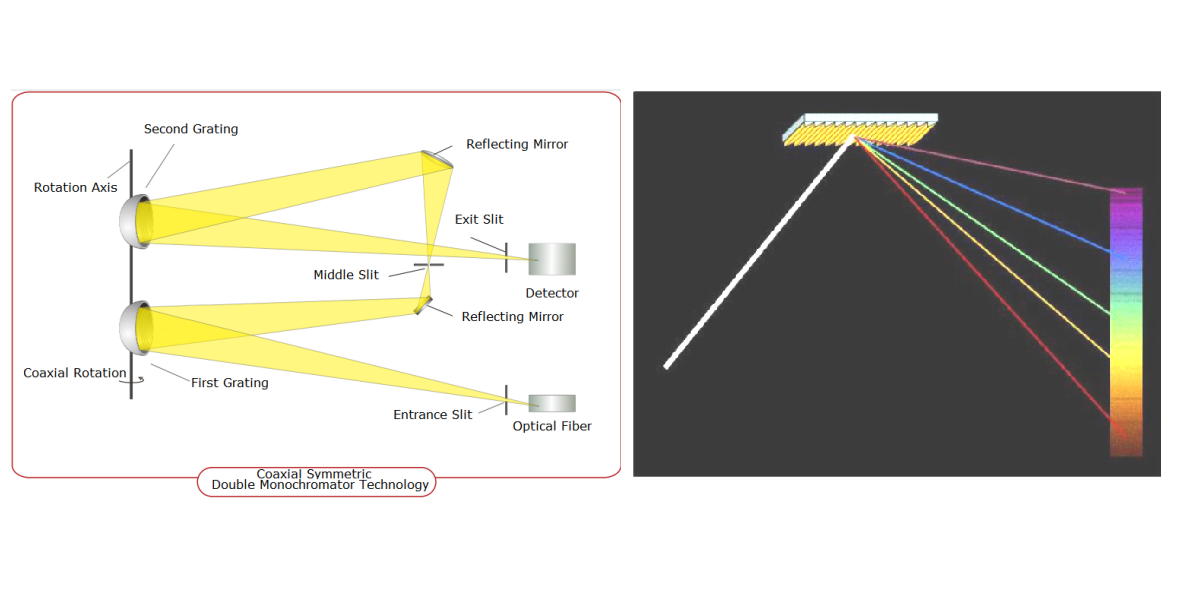

The unique coaxial double monochromator technology eliminates the scanning synchronization error of two gratings, and the system achieves extremely low stray light level and high wavelength accuracy.

2. High Measurement Accuracy

Adopting a number of patented technologies, its accurate value can trace standard to the US NIST or China NIM.

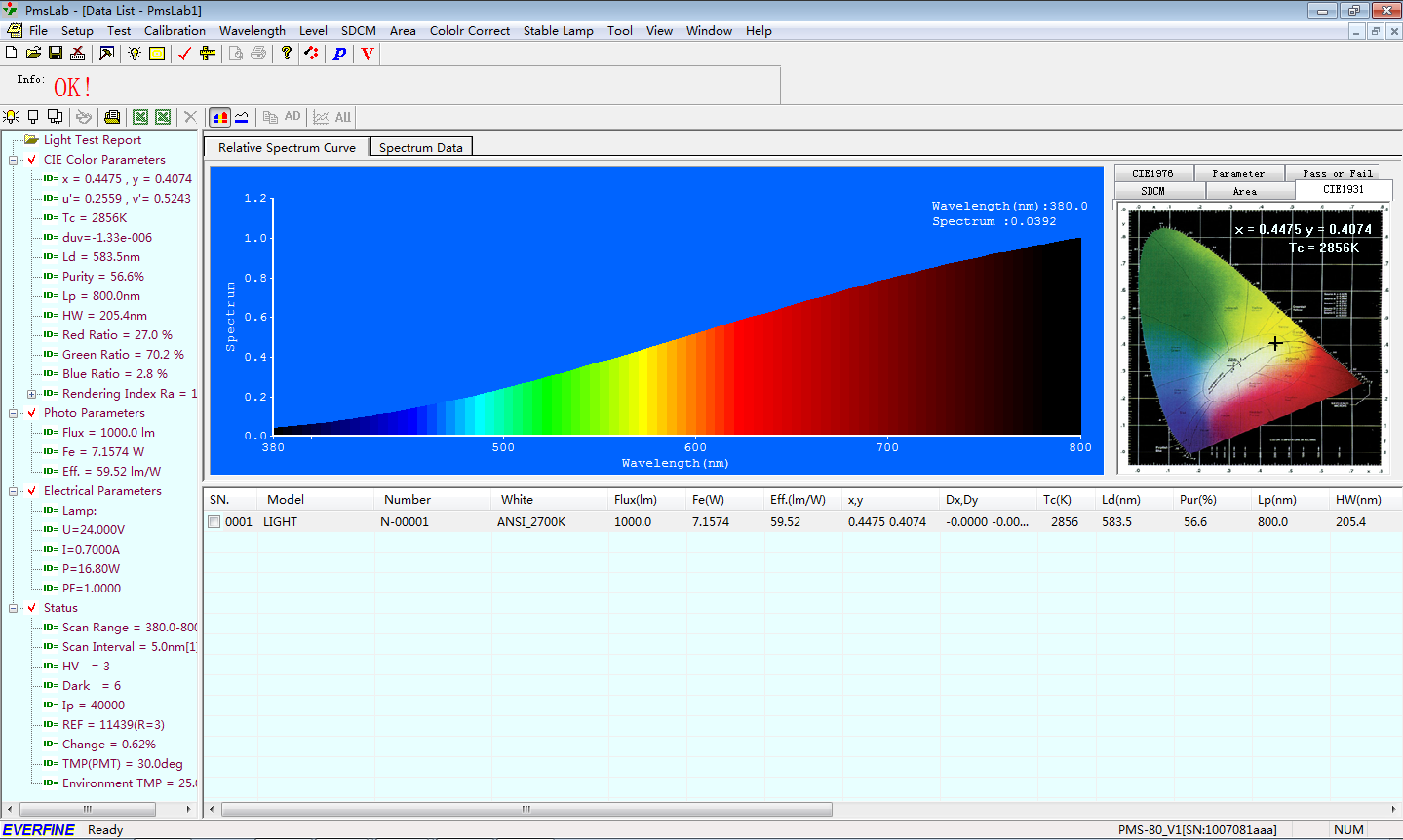

3. Powerful Software & Friendly UI

It has a high degree of intelligence, powerful software functions and complete test parameters.

4. Self-calibration & Inspection Function

The calibration and inspection work is very simple, and the working condition of the instrument can be recorded synchronously in order to monitor whether the instrument is working in the best state.

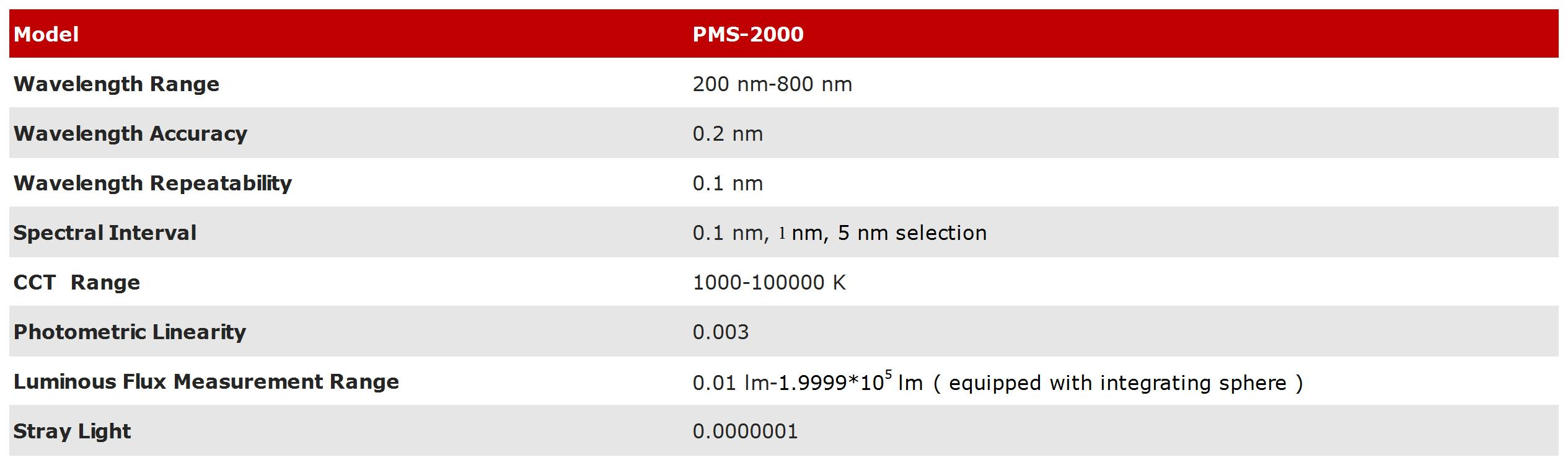

Technical Specifications
