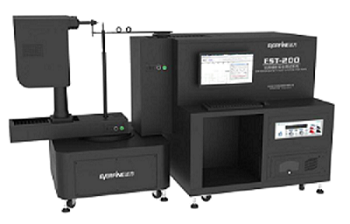

EST-200 전기장난감 안전성 평가장비

A number of testing laboratories have obtained the first batch of qualification recognition in China

파장범위: 200nm-1650nm, 200nm-2550nm

측정규격: IEC62115

목록보기

Typical Application Scenarios

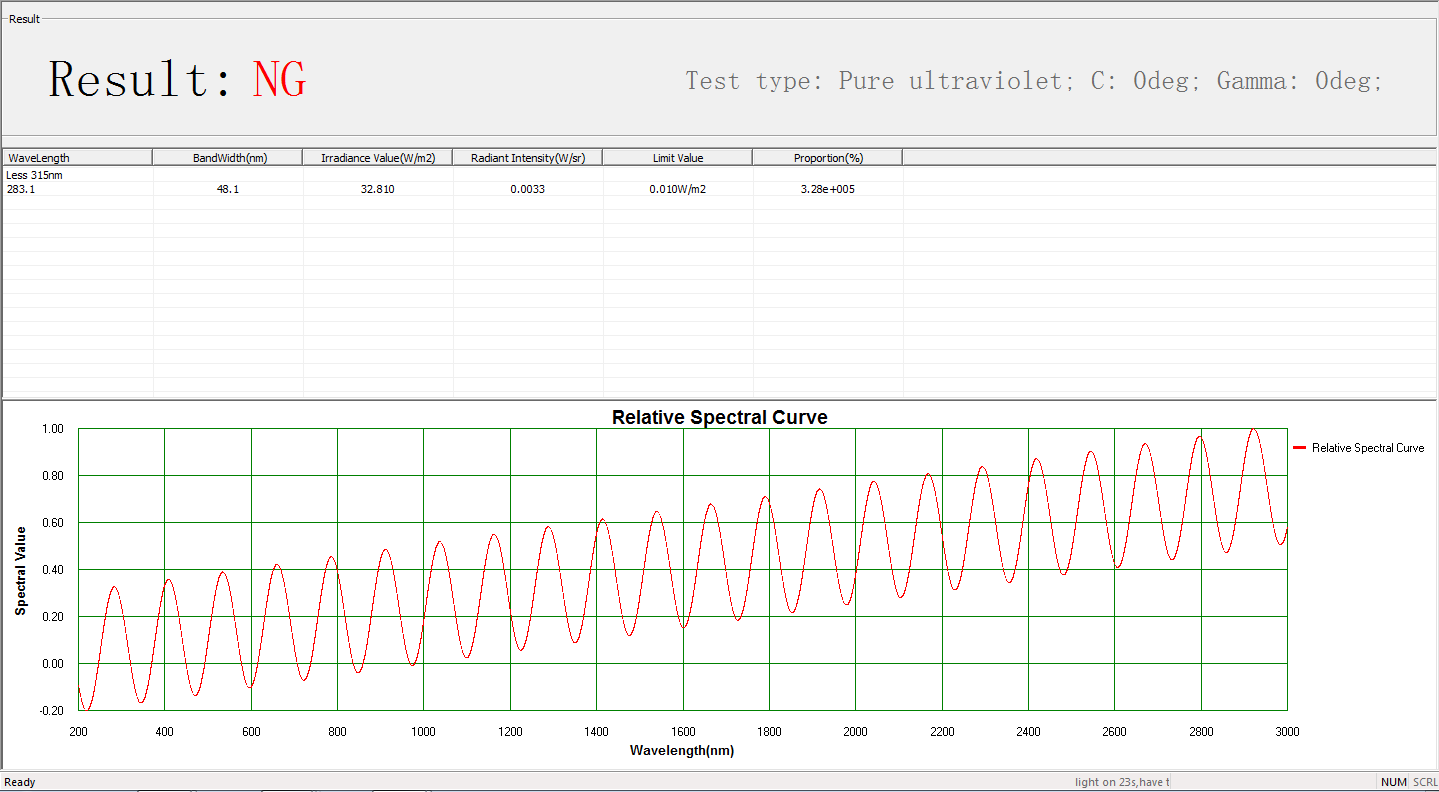

The system can test the radiation intensity, irradiance, light color expansion angle, peak wavelength, dominant wavelength, bandwidth, etc. of various toy light emitting devices. The measurement conditions meet the CIE127 standard, and the test report meets the ENIEC62115:2020 standard.

Main Characteristics

1. Sufficient Patents

The system contains a number of EVERFINE patented technology so as to lead the level in the world, relevant technical papers are also used by CIE, the whole system design is good, beautiful and generous.

2. Integrated Design

Unique test system and precision optical rail integrated design, equipped with high-precision automatic turntable, the alignment of the measured light source or lamps can achieve five-dimensional precision adjustment, to meet the test requirements of different types of samples.

3. High Level Automation

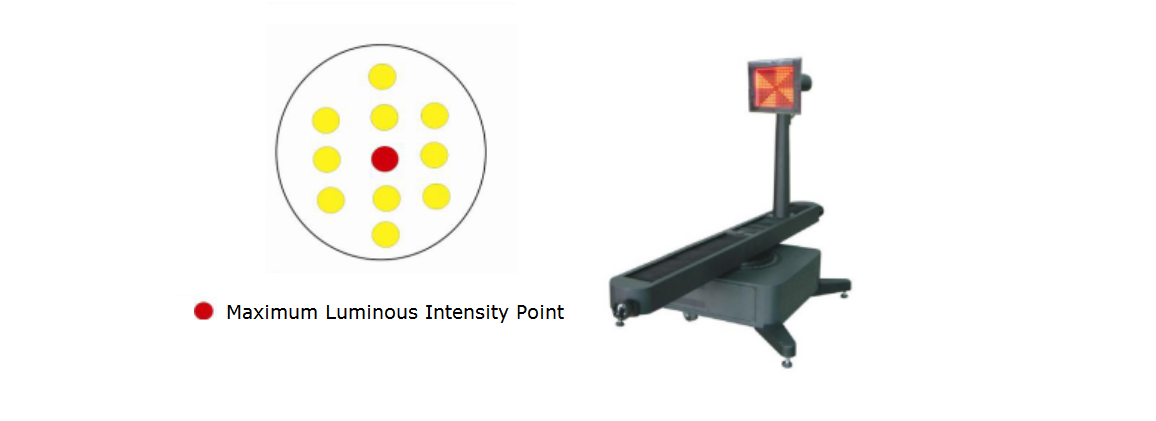

The system can automatically find the position of maximum luminous intensity of the light source, and automatically identify the area with the largest hazard weighted radiation value. The operation of the entire optical radiation hazard measurement and evaluation is very convenient, and has high accuracy and repeatability.

4. Full Wavelength Range

Owning 200-3000nm full wavelength range with low stray light down to 10^-8, the system is specially suitable for all kinds of lamps, light emitting devices, displays and other products of light safety performance test.

5. Traceable Data

The standard devices used are directly traceable to the USA NIST and China NIM, and refer to IEC standards, CIE standards and Chinese national standards.

6. Stable, Reliable and Secure

This system has complete independent intellectual property rights, different from other suppliers patchwork system, the whole set of equipment is good, beautiful, stable and reliable quality as well as guaranteed after-sales service.

Technical Specifications
