제품명

SFIM-400 휴대용 분광플리커조도계

Handheld Spectrum and Flicker Testing

파장범위
380nm ~ 780nm
조도범위
0.01lx ~ 200klx
색온도범위
1000K ~ 100,000K
측정항목
lx, CCT, CRI, Percent Flicker, Flicker Index
목록보기
Typical Application Scenarios
The SFIEM-400 integrates the functions of spectral measurement and flicker analysis, and uses the international patent design as the core to achieve high precision and high sensitivity measurement. Dedicated to the measurement of parameters such as light source, fast luminosity curve, flicker, flicker index, percent flicker, etc. One-click operation, one step to complete the field measurement and analysis, data real-time reading.
Everfine
Main Characteristics
1. SBCT and stray light correction patent achieve 0.01 lx~200 klx wide dynamic range measurement.
Everfine

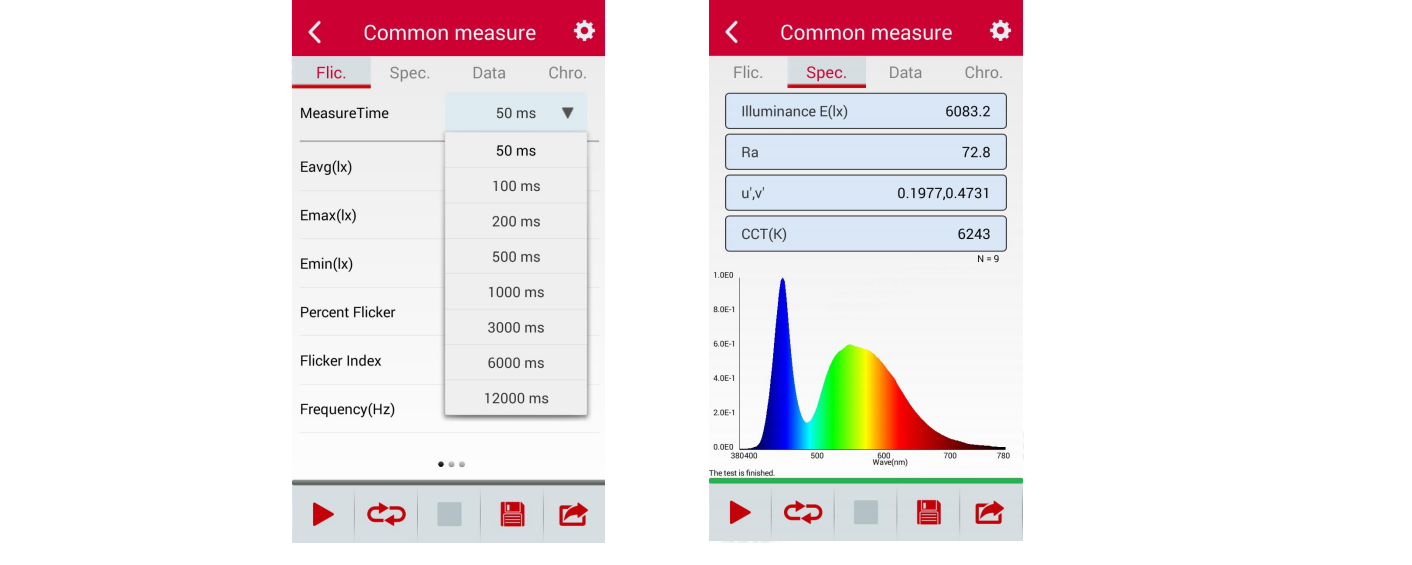

2. Fast and efficient measurement for spectral, radiant, photometry and chromatic parameters.
Everfine

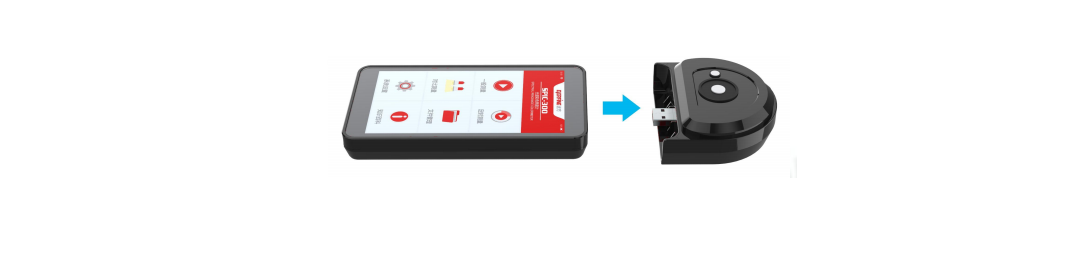

3. The test method is flexible, the detector is detachable.
Everfine

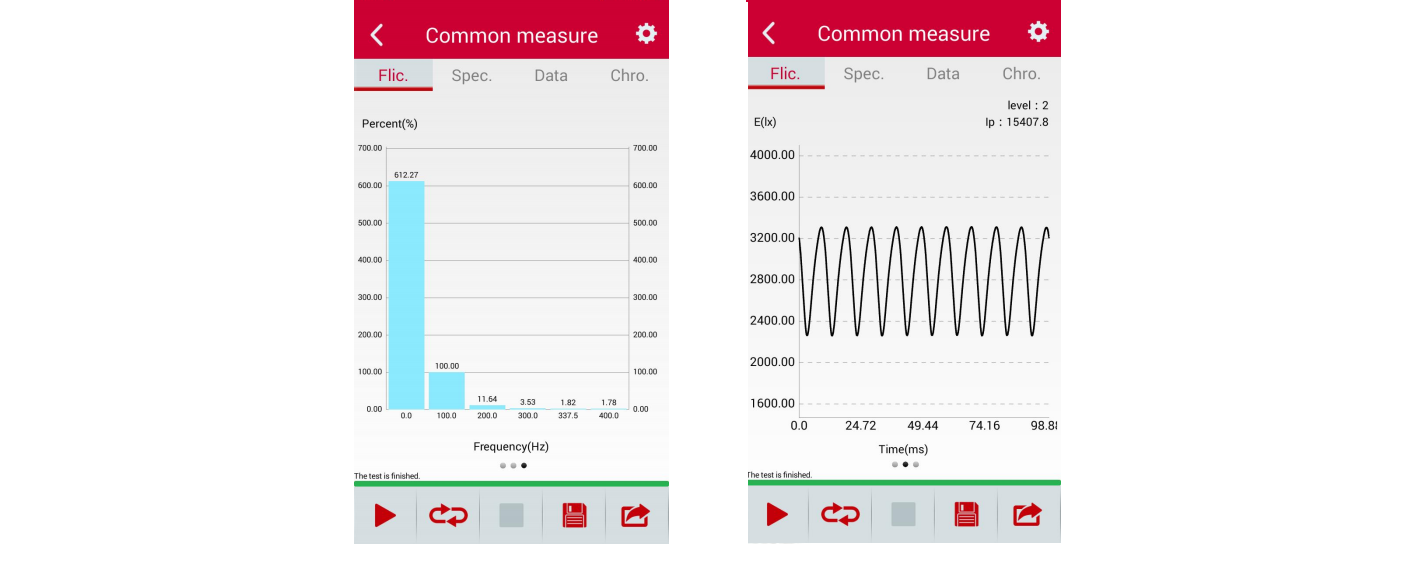

4. High-speed sampling technology up to 50 KHz records and analyzes the optical measurement waveform of transient light sources in real time.
Everfine
5. High confidence approved calibration certificate, to ensure the quantity value traceability, measurement accuracy and reproducibility.

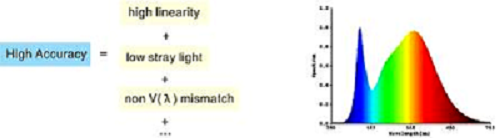

6. High measurement accuracy without V(λ) mismatching error.

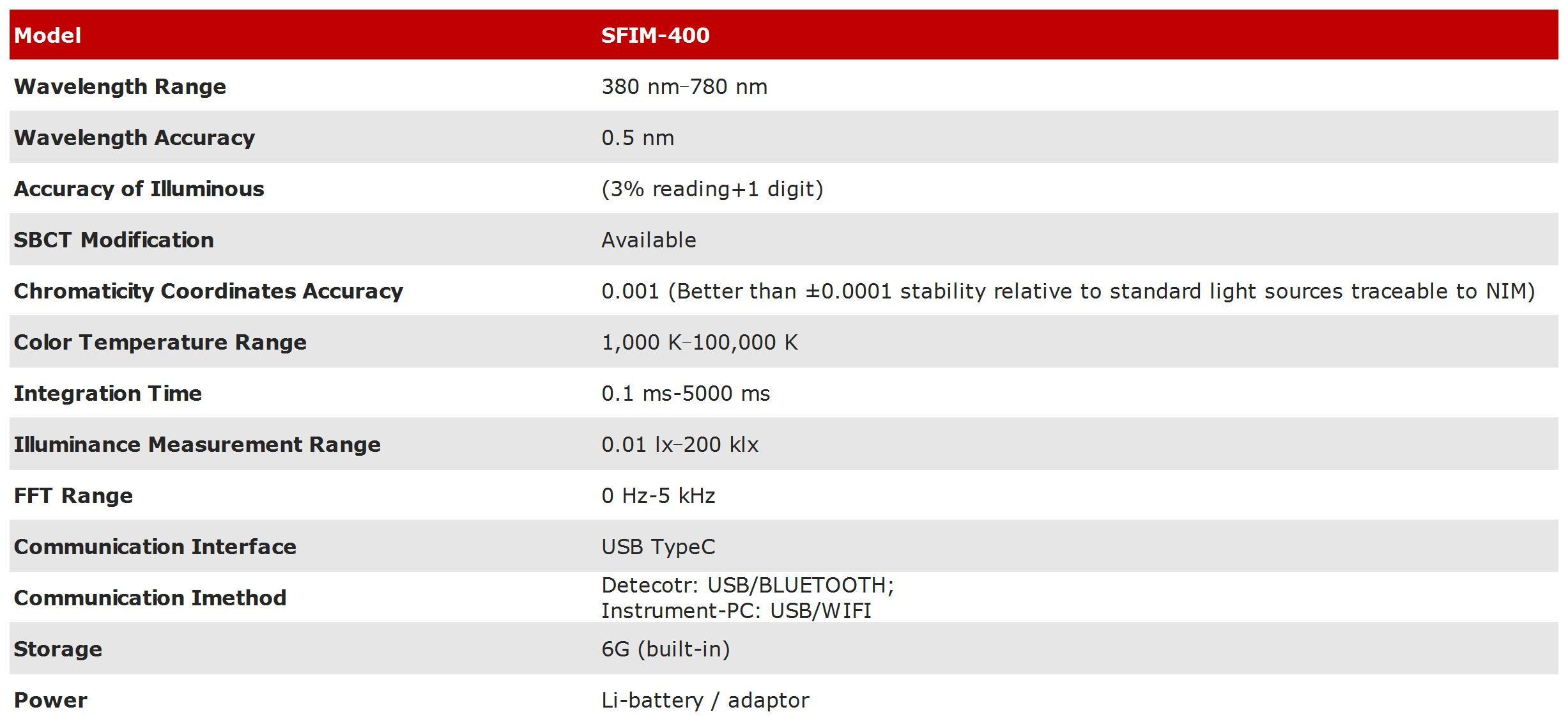

Technical Specifications
Everfine
