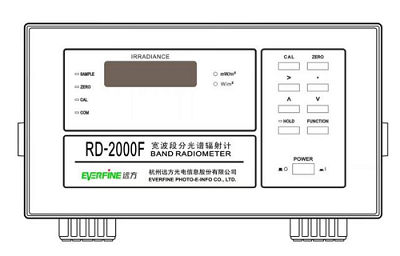

RD-2000F Broadband Radiometer for Shadowless Lamp

Meet the relevant test standard requirements of shadowless lamp for 300nm-2500nm

목록보기

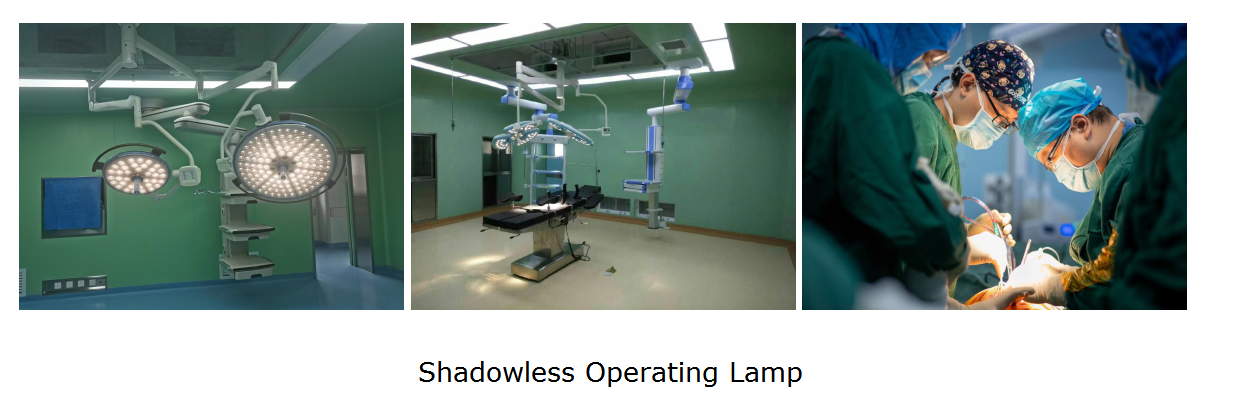

Typical Application Scenarios

RD-2000F is a professional irradiance test equipment designed for operating shadowless lamps. It is mainly used for measuring the irradiance of 300nm-2500nm of operating shadowless lamps. It is designed according to the standards such as YY0627-2008 and YY 9706.241-2020.

Main Characteristics

1. Good Stability, High Measurement Accuracy

Excellent linear and cosine characteristics, after calibration by similar standard light source, measurement accuracy ≤5%.

2. Wide Measurement Range

It can measure the light radiation in different wavelength ranges. The detector range covers 300nm ~ 3000nm and can be used for the determination of optical radiation safety in accordance with CIE and IEC standards.The detector band covers 300nm ~ 3000nm and can be used for the determination of optical radiation safety in accordance with CIE and IEC standards.

3. Easy Operation, Reading Latch Function

Parameters can be calibrated and zeroed directly by the user through panel keys; RS-232C serial communication interface, easy to communicate with the computer.

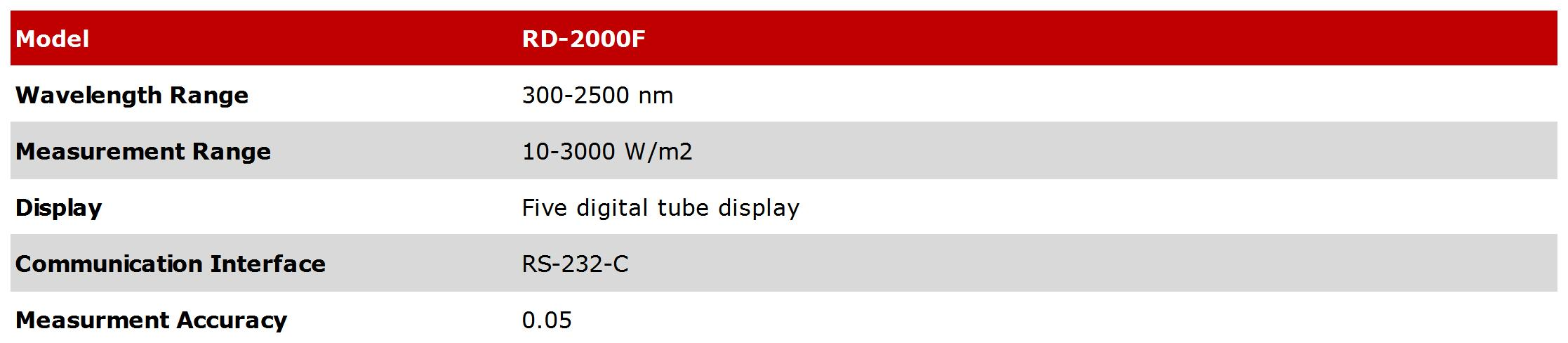

Technical Specifications
