IR628 IR 감광성 측정 장비

Accurate measurement of the spatial sensitivity of a photosensitive tube

: 자체 암실 구성으로 별도의 암실 공간이 필요하지 않음

측정범위: 200nA ~ 20mA, 4level 10times

목록보기

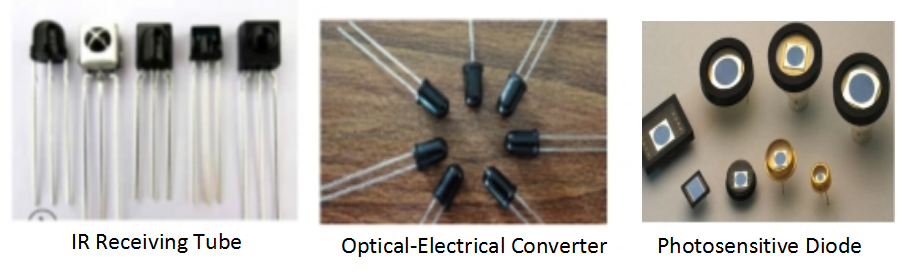

Typical Application Scenarios

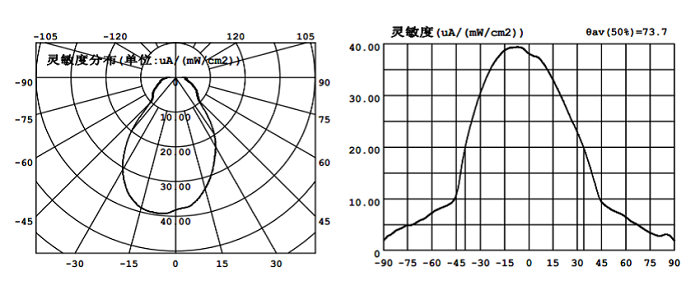

The system vertical axis (γ axis) rotates automatically, and the horizontal axis (C axis) manually adjusts the rotation. The photosensitive diode is installed in a rotating device to scan around the infrared light source ± 90, test the absolute photoelectric sensitivity parameter of the photosensitive diode and receive the Angle, and draw the relative sensitivity distribution curve at different angles.

Main Characteristics

1.Adopt high precise LED mechanical positioning device and integrated design center alignment system, high measurement accuracy;

2.Multiple level of scanning interval are selectable, which can meet the measurement requirements of different accuracy;

3.Adopt constant current power source to the transmitting tube, which is automatically adjusted by microcomputer through D/A with high accuracy.

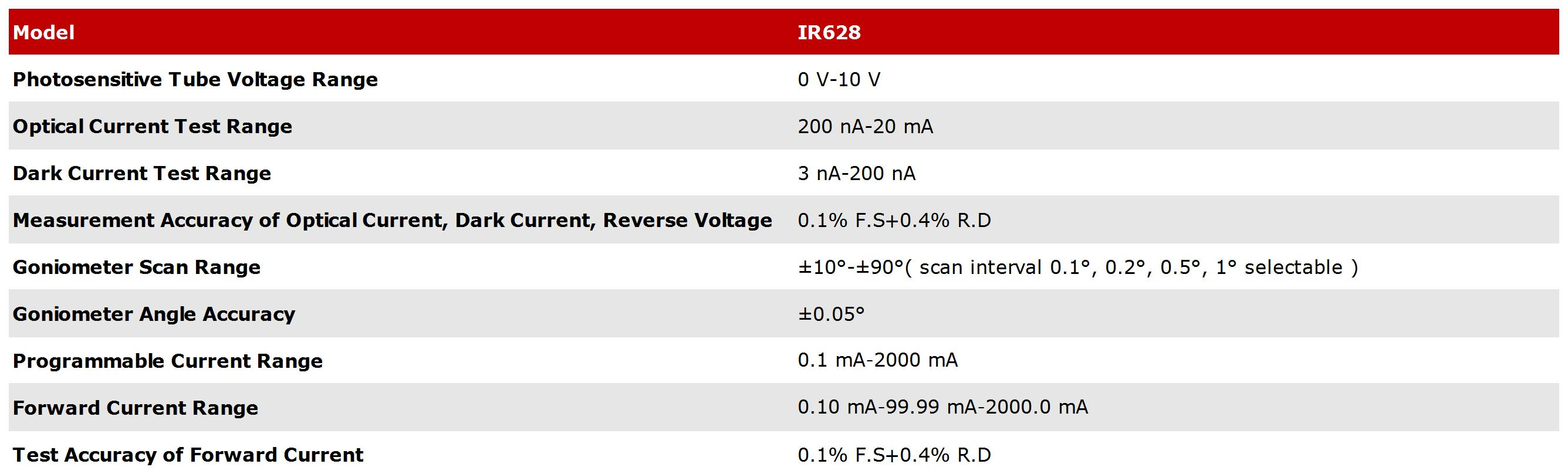

Technical Specifications
