LED626IR / LED620IR 적외선 배광기 시스템

Infrared emission tube/infrared LED radiation intensity distribution measurement

측정범위: 0lm ~ 200lm

전압: 0.001V ~ 10.000V

전류: 1,000mA ~ 2000.0mA

타입: 소형 IR LED

목록보기

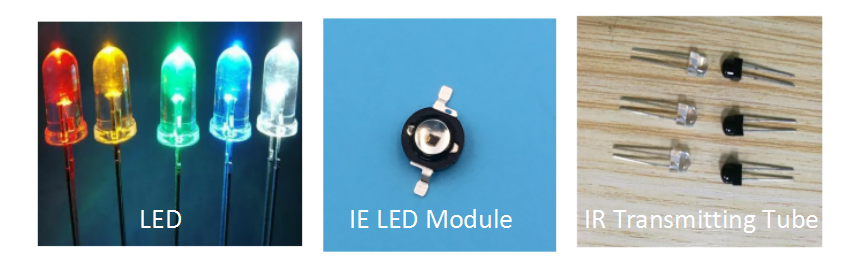

Typical Application Scenarios

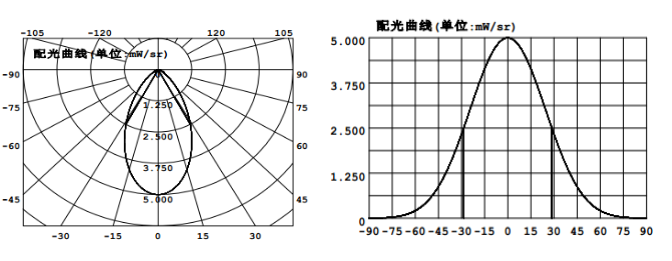

This system is suitable for testing the radiation intensity distribution curve (polar or rectangular coordinates), 3D radiation intensity distribution map, change characteristic curve of radiation intensity with forward current, forward current with forward voltage change curve of radiation intensity with time

Main Characteristics

1.Integrated radiation intensity distribution and angle function

Equipped with infrared radiation measurement detector, fully meet the typical infrared band of 850nm, 940nm radiation intensity test requirements.

2.Automation, compliant with CIE standards

The LED rotates automatically along the vertical axis (γ axis), while the rotation along the horizontal axis (C axis) is automatically adjusted. It conforms with the condition A and condition B of CIE pub. No.127.

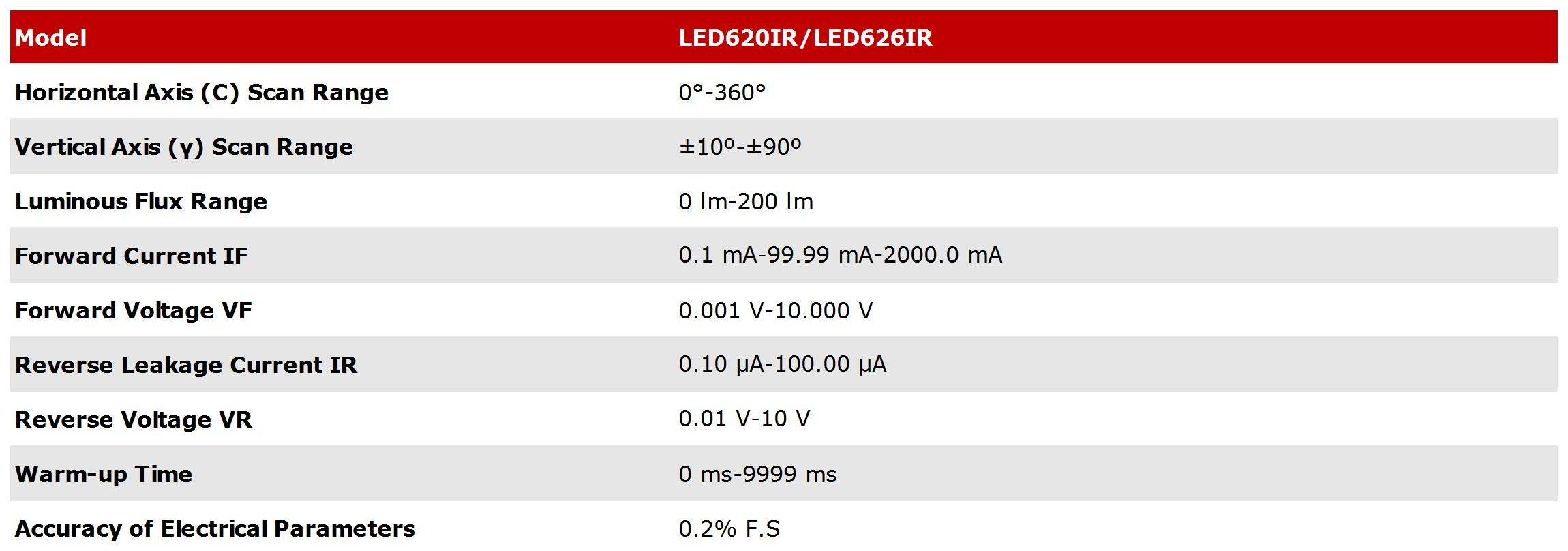

Technical Specifications
