EMS61000-11K

0% with high impedance and low impedance modes available

측정규격: IEC61000-4-11

목록보기

Typical Application Scenarios

EMS61000-11K is used for the voltage dips and interruptions test of lighting appliances, electronic circuits and equipment, and can simulate the impact on the equipment under test caused by faults (such as short circuit) of power grids or power facilities or large changes in loads with the advantages of wide voltage dips levels and the arbitrary dips start phase.

Main Characteristics

1. Wide range of voltage dips levels, strong applicability.

2. The initial phase of the test can be set arbitrarily to meet the phase requirements of special products.

3. Built-in over-current and over-voltage automatic protection function, safe and reliable.

4. Equipped with RJ45 communication interface, it can realize upper computer software remote control.

5. Built-in file system supports U disk reading and writing, it can easily import, export and save related programs and test reports.

6. 10.1 inch LCD touch display, fully intelligent programmed design.

7. Built-in cruise parameters of test level and initial phase, easy to operate.

8. Support voltage change function (optional).

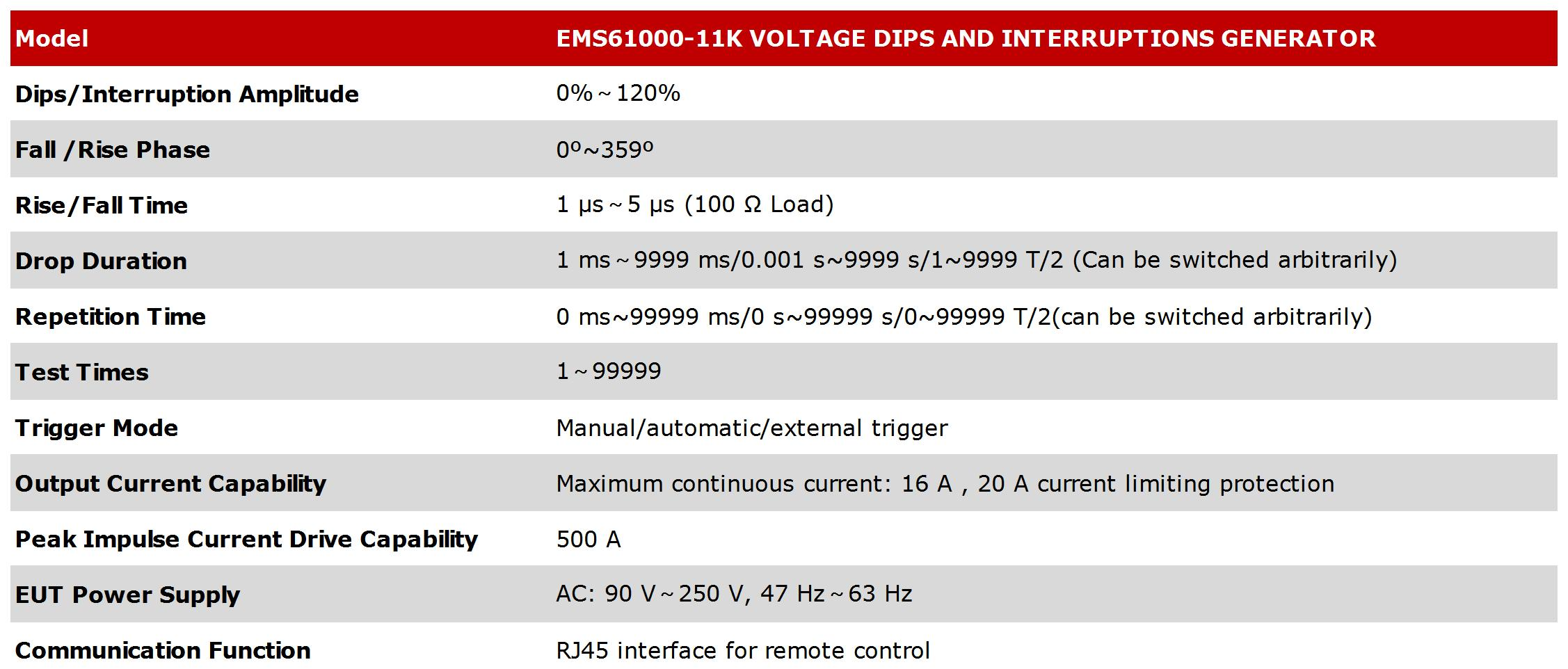

Technical Specifications
