제품명

HSF-200 LED highly sensitive and fast electro-optical performance analysis system

Equipped with a highly sensitive optical spectrum analyzer Achieve extremely low measurement limits

파장범위
380 ~ 780nm
파장정확도
0.3nm
전력측정범위
10-5 ~ 10mW
광도측정범위
0.001 ~ 1000mcd
목록보기
Typical Application Scenarios

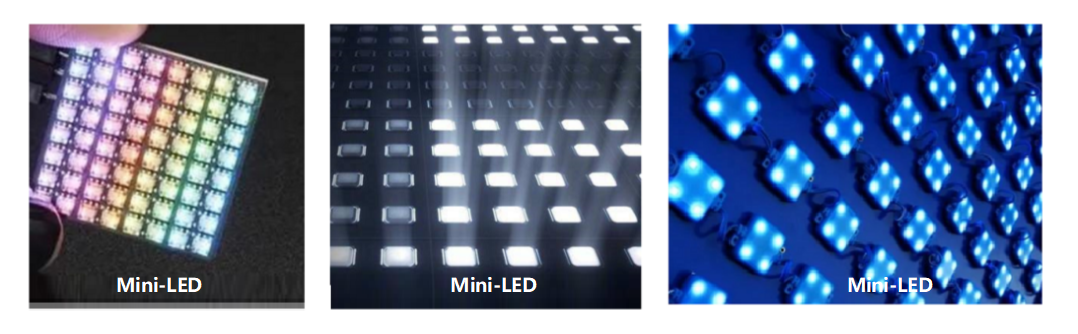

HSF-200 equipped with highly sensitive absolute spectral radiation power analyzer, and highly sensitive light intensity measurement unit, and equipped with high-speed power supply, through professional measurement and analysis software, can achieve accurate spectral radiation power, luminous flux measurement, light intensity measurement and external quantum efficiency measurement. This device is mainly object-oriented for Mini-LED single point pixel/array/module/module.
Everfine
Main Characteristics
1.Extreme low measurement lower limit
Precise optical design and high-precision detector coordination, to achieve a very low measurement lower limit;
2.Advanced detector
Advanced photodetector and sampling circuit design are adopted to ensure the quality of the collected signals;
3.Built-in precision constant-current power supply
Power supply built-in high precision constant current power supply, while integrating precision measurement and digital display in one;

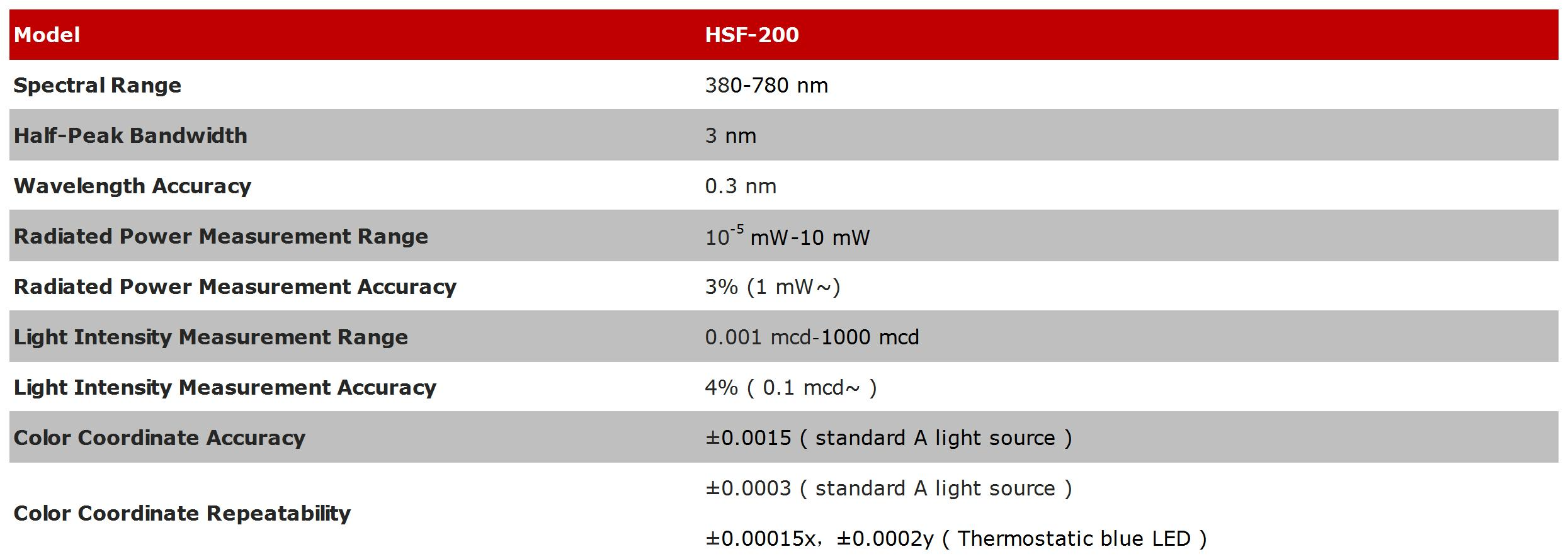

Technical Specifications
