HAM-300 고정밀 헤이즈미터

High-precision and fast spectral measurement technology enables simultaneous measurement of spectra, haze and light transmittance

목록보기

Typical Application Scenarios

HAM-300 is mainly used to measurethe spectral transmittance, haze, etc. parameters of the glass cover plate, optical film and other materials under different wavelengths, as well as the light color performance of materials under specific light sources, and solve the performance evaluation of AG, AR glass and optical film samples, according to ASTM D1003, GB/T 2410. ISO14782, JIS K7136, JC/T2130-2013, JIS K7105-81 etc., which has been adopted by many companies in the industry.

Main Characteristics

1. Comprehensive analysis of transmission performance

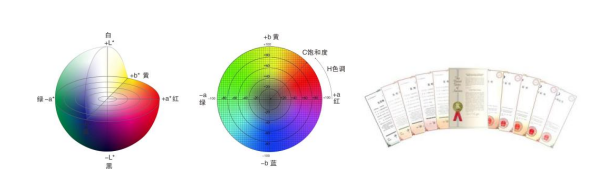

High Accuracy Spectroradiometer is used to evaluate the optical properties of materials more comprehensively, such as total transmittance, haze, scattering transmittance, parallel light transmittance,Lab, color temperature, yellow index, etc., with a wide range of measurement wavelength.

2. Built-in a variety of light source standards

ASTM, ISO, GB/T, JC/T, JIS K, etc. standards.

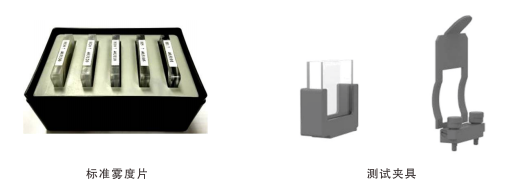

3. A variety of fixtures or accessories are available

Place horizontally or vertically to meet the measurement requirements of liquid and solid samples.

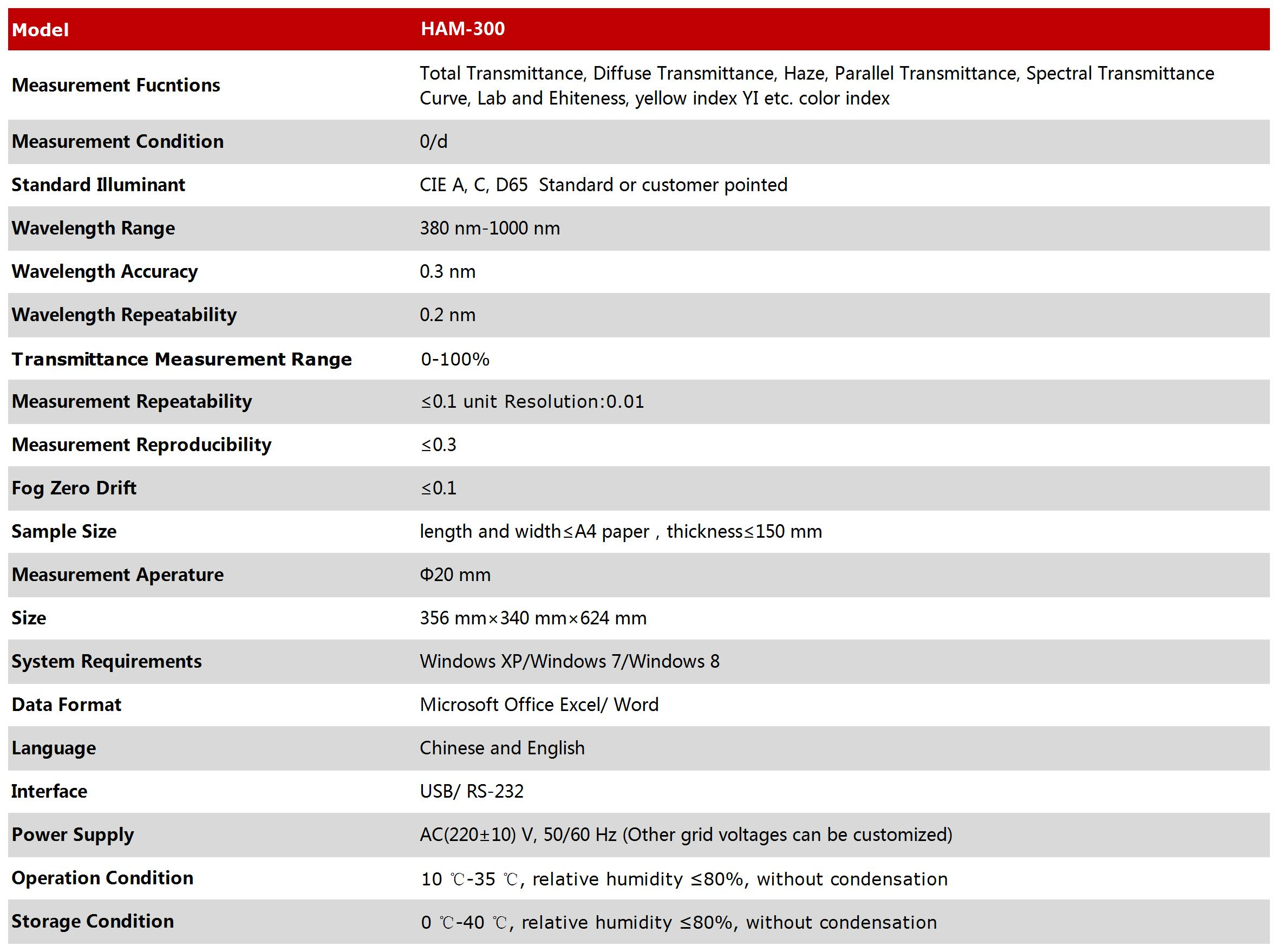

Technical Specifications
