DRT 주파수 측정기

Sample rates up to 1MHz are possible

측정범위: 0.001 cd/m2 ~ 100,000 cd/m2

정확도 오차: 3%

목록보기

Typical Application Scenarios

DRT display response time analyzer is equipped with high-precision photoelectric sensor and high-speed sampling circuit. It can measure the instantaneous characteristics of OLED, LCD, Mini-LED, Micro-LED and other displays, and refer to the response time measurement requirements,including luminance, display rise time, fall time, gray response time, preheating,etc.refer to IDMS, IEC and other standards.

Main Characteristics

1.High precision

The precision photometric detector meets the national first-class standard and meets the need of high precision luminance measurement.

2.High sensitivity, wide dynamic range

High measurement sensitivity and linear dynamic range for accurate evaluation of HDR displays.

3.High sampling rate

The sample rate is up to 1MHz , maximize the extent of the display luminance bersus the time curve.

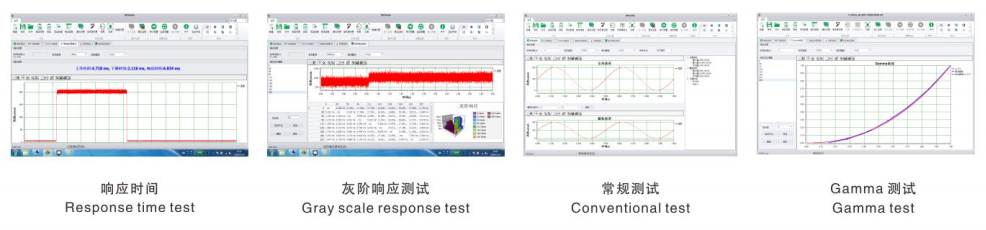

4.Multiple data-processing algorithms

Built-in multiple data processing algorithms, can process the response time curve, refer to the requirements of IDMS and IEC standards.

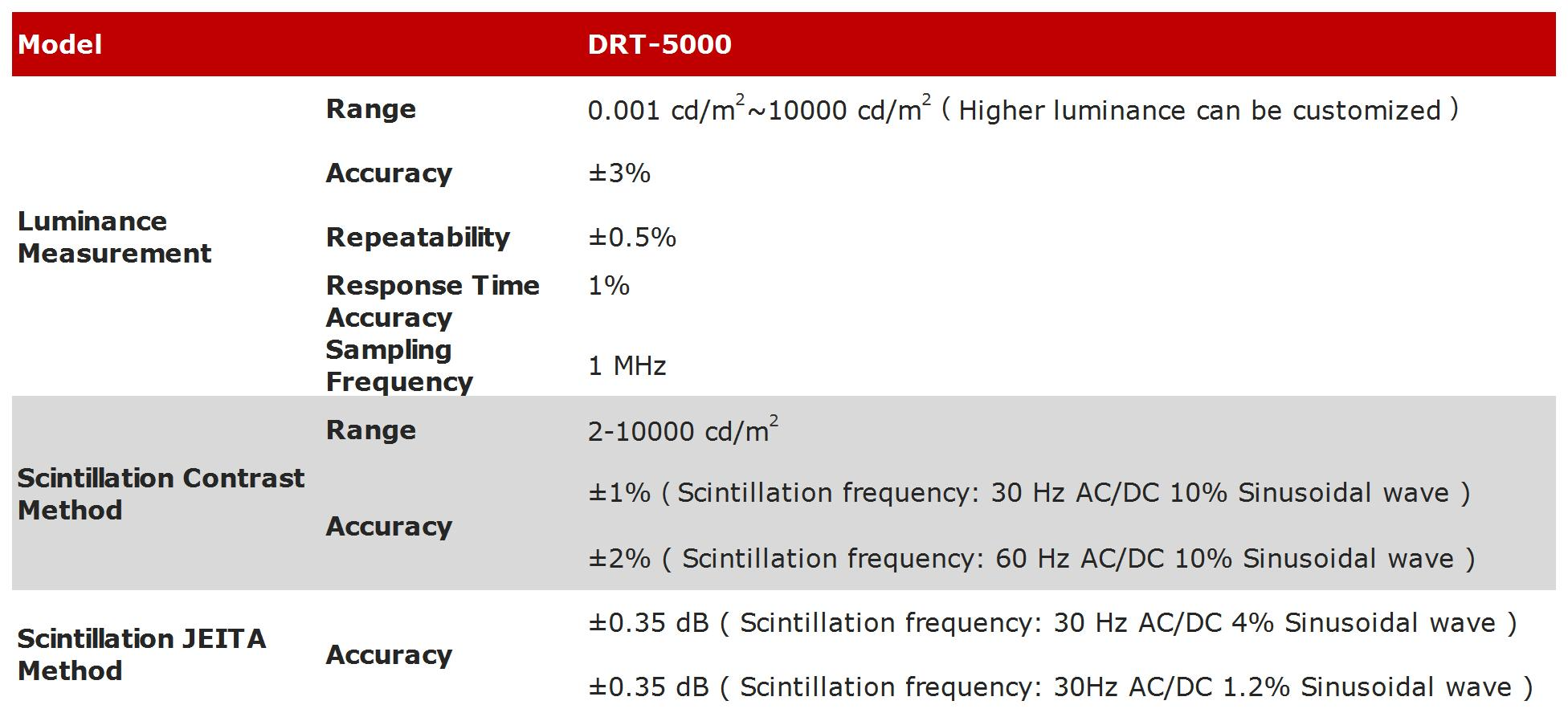

Technical Specifications
