TLS-75 분광조절 조도표준광원

Industry-leading spectral continuity Almost any target spectrum of 380~1000nm can be simulated output

파장범위: 380 ~ 1000nm

광원: CIE A, B, C, D50, D55, D65, D75, E, F1, F12, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

직경: 75mm / 조도범위 : 1 ~ 10,000 lx

균일도: 98.5%

목록보기

Typical Application Scenarios

TLS-75 adopts multi-channel LED, simulates typical indoor and outdoor light sources, and realizes automatic luminance adjustment within a large dynamic range. It is suitable for the calibration measurement of ambient light sensors, as well as the dynamic range and flatness of imaging photometers. Field, luminance, chromaticity and other characteristic measurement calibration.

Main Characteristics

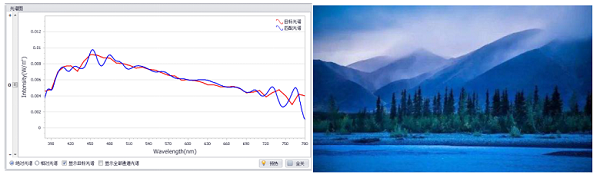

1.Simulate high quality D light sources and all kinds of artificial electric light sources

TLS-75 adopts multi-channel LED, simulates typical indoor and outdoor light sources, and realizes automatic luminance adjustment within a large dynamic range，Typical Ra ≥99.

2.Hypercontinuous color temperature simulation output

Accurate output color temperature in the range of 2000K to 25000K, providing standard light source for the camera and camera color balance correction.

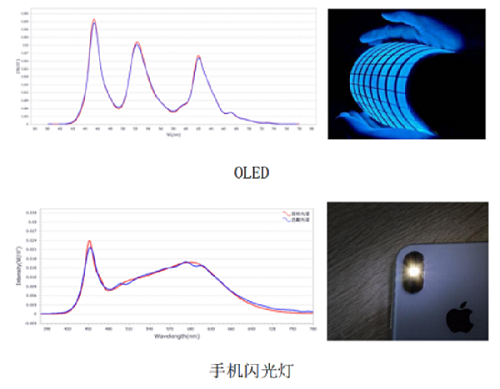

3.Backlight lighting simulation

It can simulate the typical spectrum of OLED and mobile phone flash, and provide a high stability standard light source for the calibration measurement of the special luminance meter for the display measurement

4.All kinds of monochromatic light output simulation (VIS ~ NIR)

It can output a variety of colors of standard monochromatic light, in line with EMVA 1288 for bandwidth requirements, to meet the image sensor chromaticity correction measurement needs.

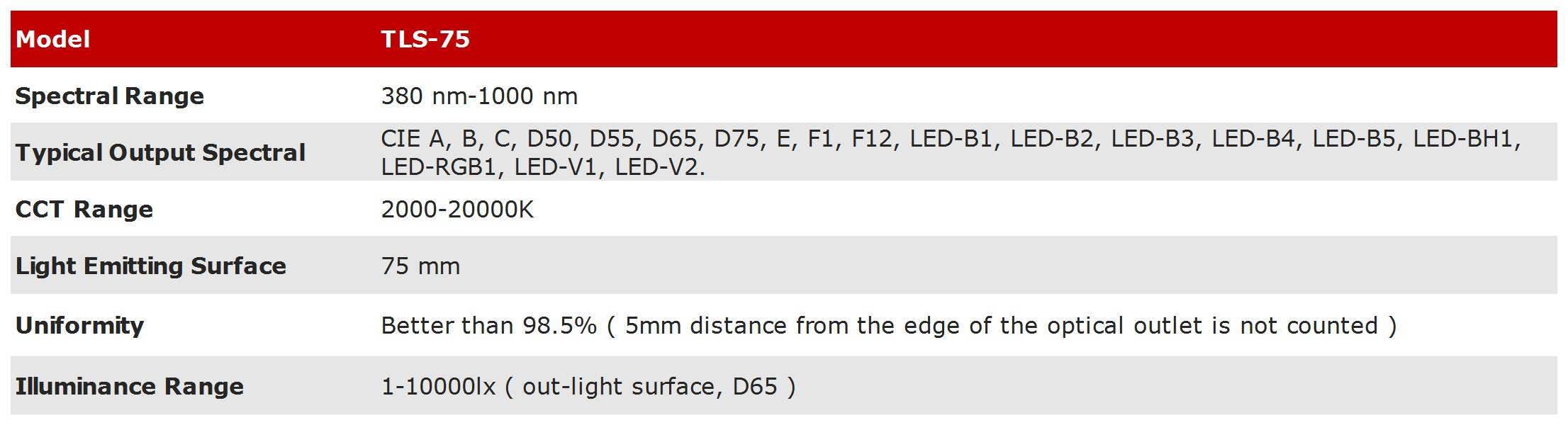

Technical Specifications
