TLS-1000SWIR 분광조절광원

The spectrum covers the 780-1650nm band

파장범위: 780 ~ 1650 nm

파장옵션: 850, 940, 1050, 1200, 1300, 1550, 50mm별 별도 설정가능

광원→조사면: 1.5 ~ 2 m

조사면균일도: ＞90%

목록보기

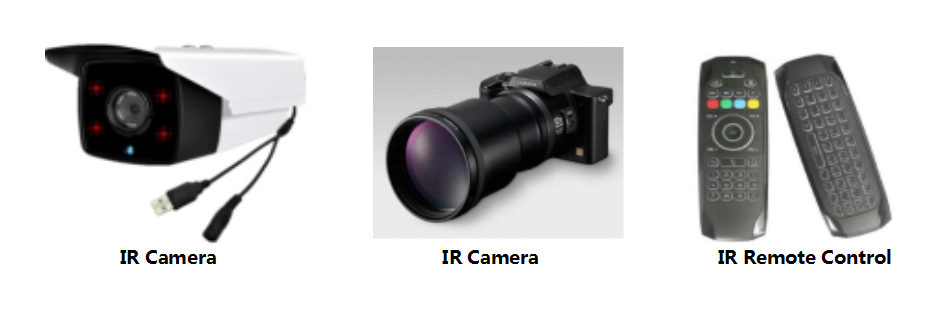

Typical Application Scenarios

TLS-1000 SWIR spectra tunable light source output spectrum covers the 780-1650nm band, it is suitable for the measurement and correction of SWIR short-wave infrared cameras and image sensors, light source configuration monitoring and lighting intelligent adjustment software, with self-feedback and self-adjustment functions. suitable for various applications such as R&D laboratories and QC.

Main Characteristics

1.Light source output wavelength range: 780-1650nm;

2.Optional wavelength bands: 850nm, 940nm, 1050nm, 1200nm, 1300nm, 1550nm can be individually selected for output, with mixed light output that can be set to different radiation intensities;

3.The radiance at 2 m is adjustable and has high uniformity.

4.The light source has a bracket, which can be moved at will (the bracket has a brake roller), and the height adjustable range: 0.7M~1.5M;

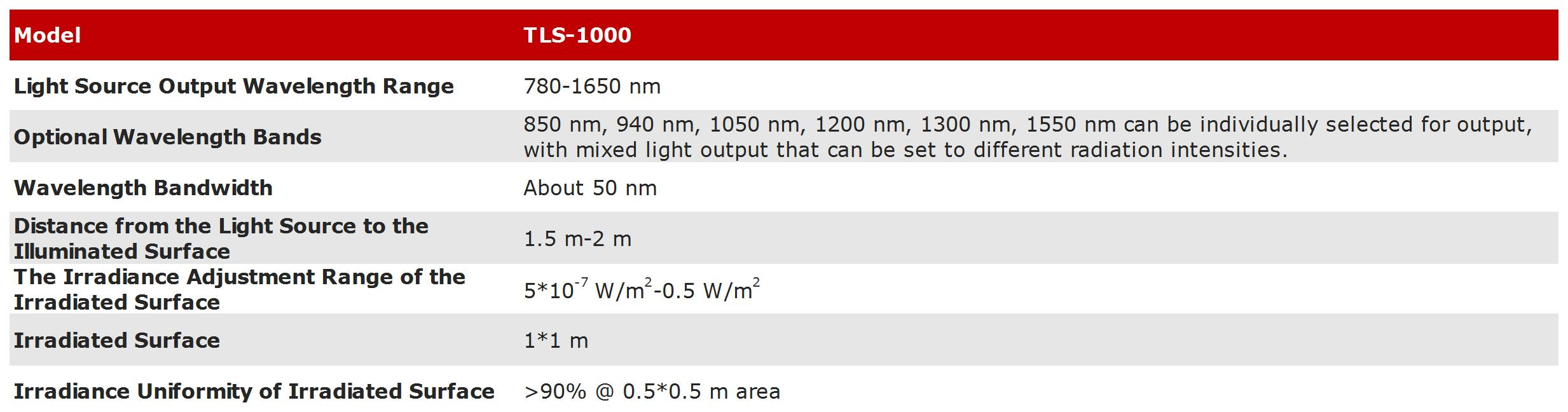

Technical Specifications
