SRC-600 분광 점휘도계

Standard machine for light and color measurement Excellent accuracy and speed are maintained even at low brightness

파장범위: 380 ~ 780nm

측정범위: 0.0005 cd/m2 ~ 600,000 cd/m2

목록보기

Typical Application Scenarios

SRC-600 Spectral Radiance Colorimeter is a high-precision spectral colorimeter launched by EVERFINE based on nearly 30 years of optical radiation measurement technology, combined with precision optical design and high-performance electronic signal processing technology. It integrates spectral, luminance, and chromatic measurement functions, achieving accurate absolute measurement of the light color of the measured products. It is widely used in the development, quality inspection, and testing of various atmosphere lamps, light guide strips, and other products.

Main Characteristics

1.Combines spectral, luminance, and chromatic measurement functions

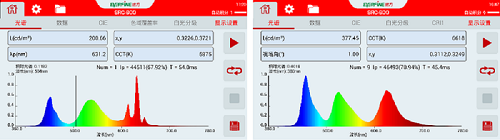

SRC-600 Spectral Radiance Colorimeter can measure parameters including luminance, relative spectral power distribution, color coordinates, correlated color temperature, color rendering index, etc., covering the light and color parameters of the measured object, truly achieving one machine with multiple uses.

2.High measurement speed, high accuracy, and high resolution

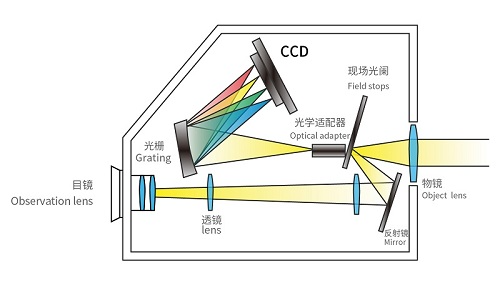

It uses a constant temperature cooling array detector, which eliminates V(λ) mismatch errors and has minimal stray light interference, providing a guarantee for high-precision measurement. At the same time, the pixel cooling array detector provides a resolution of 0.6nm/pixel and millisecond-level measurement speed.

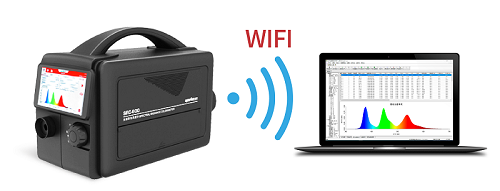

3.WIFI remote operation testing

WIFI communication facilitates remote measurement and data transmission by PC.

4.Ultra-wide measurement range

Without attenuation plates, the luminance measurement range is 0.0005cd/m2～600,000cd/m2, and it can achieve an ultra-wide range of 10E8 without attenuation plates, meeting the requirements of high-contrast measurement.

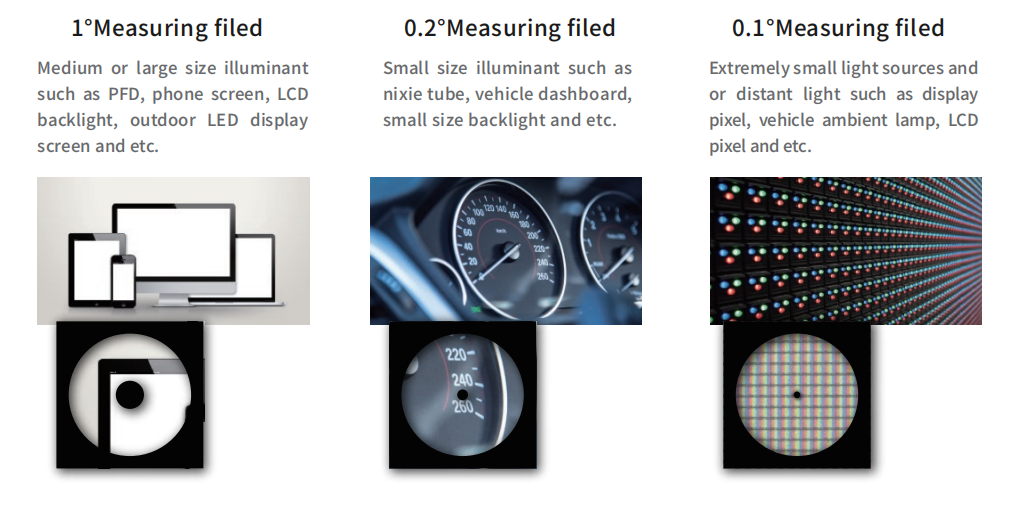

5.Multiple field of view angle switching, extremely wide application range

According to different application objects, different optical measurement angles of 1°, 0.2°, and 0.1°can be selected, with multiple field of view angle switching. It is suitable for the measurement of small products such as atmosphere lamps, backlit characters, instrument panels, and logo lights, as well as large-sized luminous bodies such as vehicle displays.

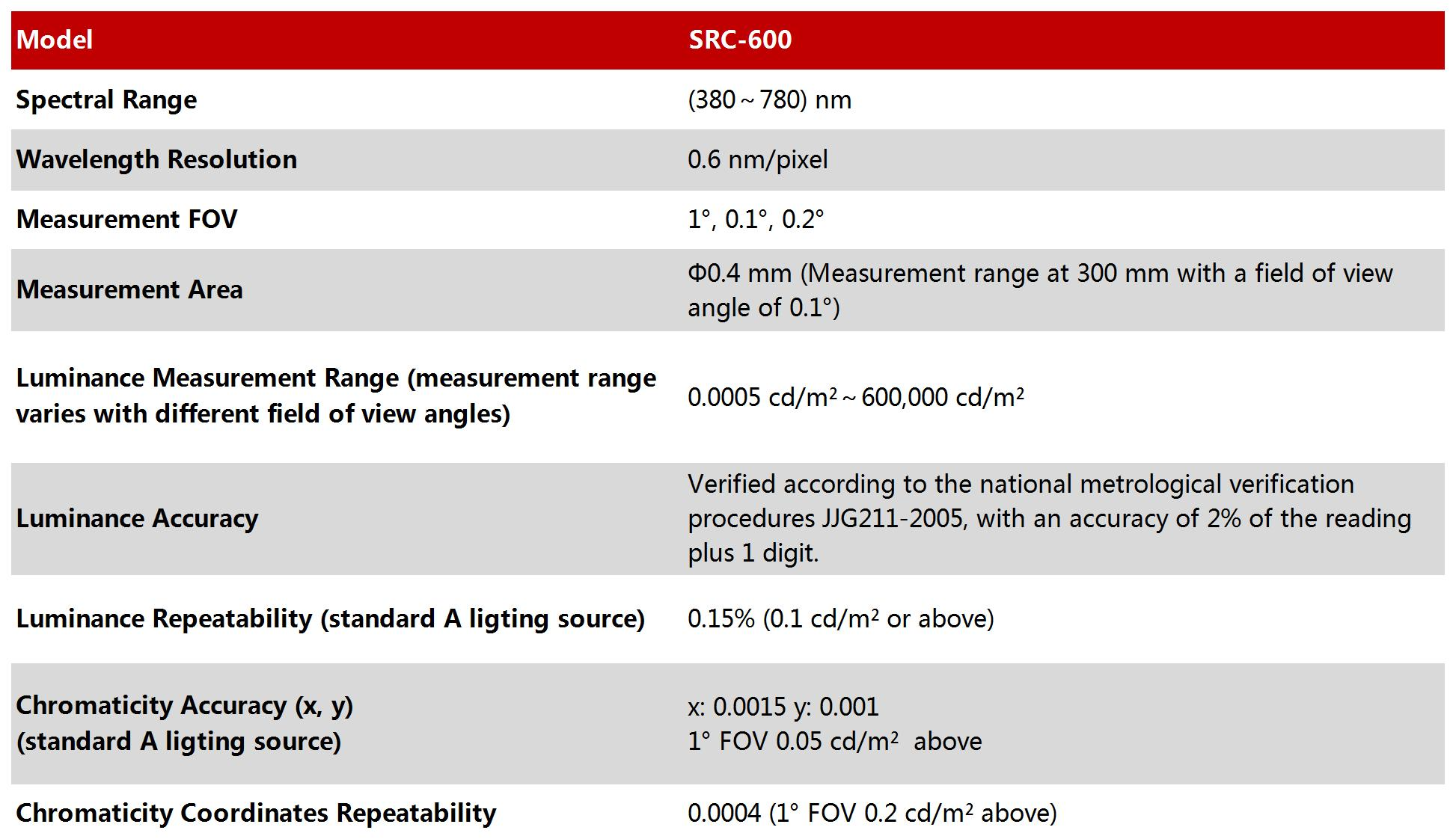

Technical Specifications
