MFL-300/500 Analysis System for Flash Light（VIS-IR）

Low light trigger measurement, fast measurement of 9 channel flash waveform

목록보기

Typical Application Scenarios

Low light trigger measurement, MFL-300/500 with multiple removable probes, 380-780nm and 940nm two models, meet the mobile phone, watch flash and infrared flash and other instantaneous characteristics measurement, It can analyze the uniformity of luminosity distribution, the measurement of flash index, flash time color coordinate and color rendering index.

Main Characteristics

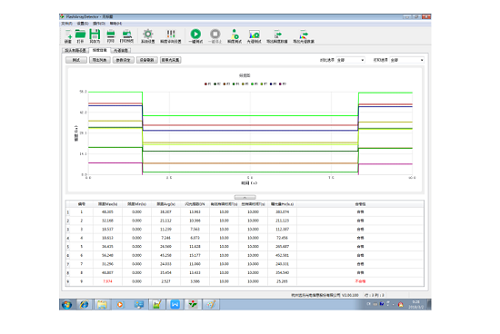

1.Flash waveform synchronous fast capture

The sampling speed is fast, reaching 20 kS / s, which can quickly and accurately capture the fine flash characteristic curve, and accurately obtain the flash index, flash peak illumination and other parameters.

2.Multi-channel high precision measurement

9-channel array measurement, and the 9 channels must be highly synchronized to accurately obtain the light distribution characteristics of the flash at each moment point and the total exposure uniformity.

3.Color reproduction and fidelity evaluation parameters

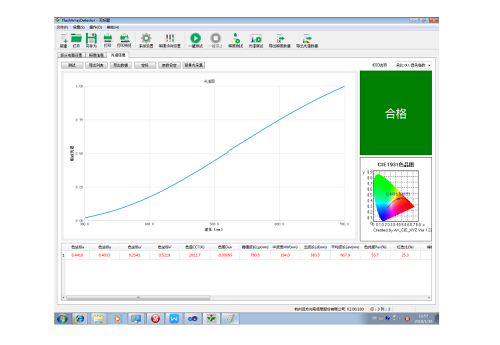

With transient spectrum measurement technology, color temperature, color rendering index and SDI can be measured and analyzed quickly and accurately. This is very important for evaluating the color reproduction quality of flash.

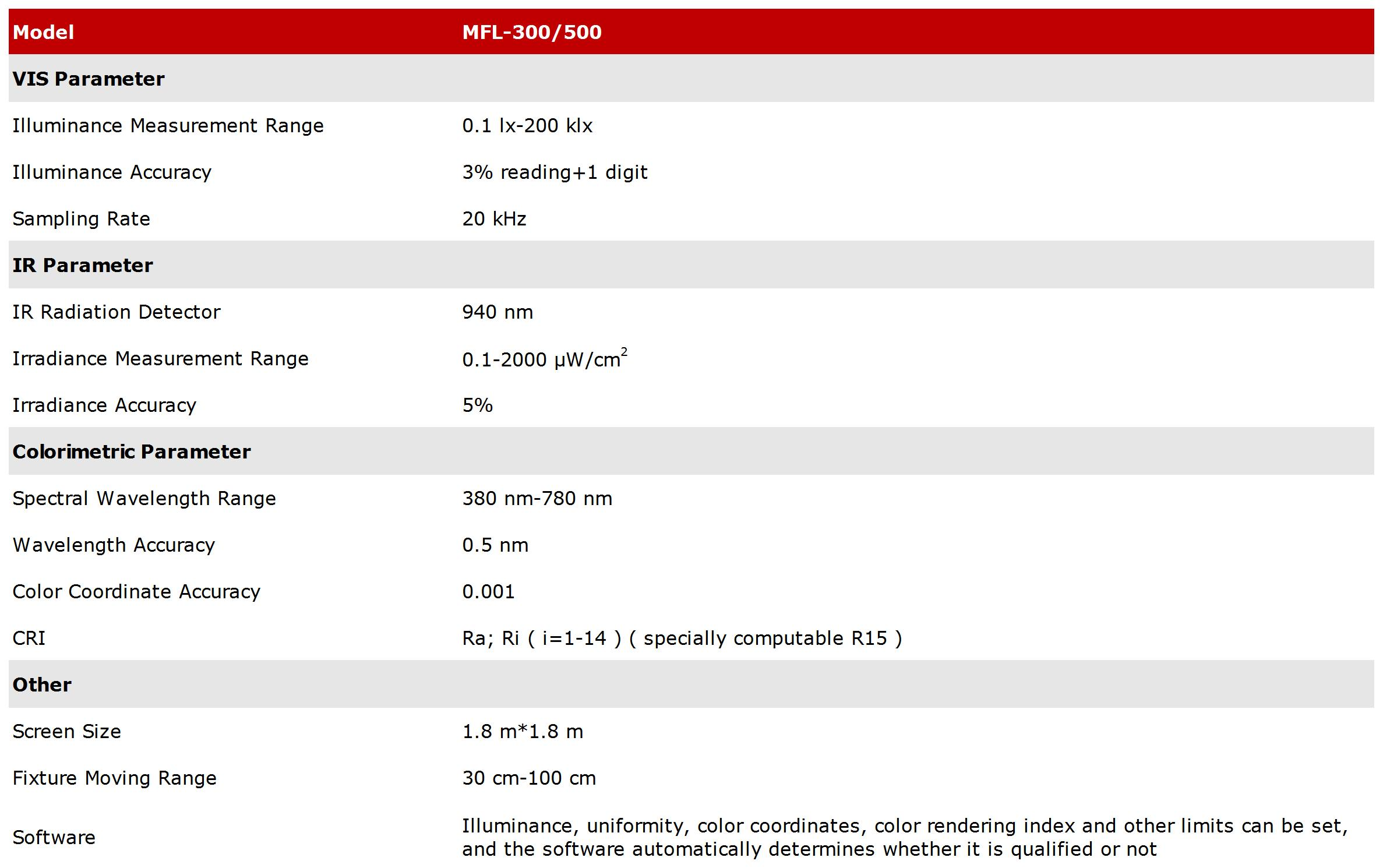

Technical Specifications
