DPS 시리즈 AC전원 공급장치

High output stability Strong load adaptability

목록보기

Typical Application Scenarios

DPS serial AC power supply has advantages of high loading capacity, high stability, pure output waveform and convenient operatio,and output short circuit, overcurrent, overvoltage, overpower, overheat alarm protection function. With communication interface and special measurement and control software, especially suitable for high demand test occasions, is the ideal AC test special power supply.

Main Characteristics

1. High output stability.

2. Low distortion, high purity, suitable for harmonic test occasions.

3. Extremely fast transient response speed (<400 µ s).

4. High wave peak factor (3), with stronger band-load capacity.

5. With a rotary encoder, the voltage and frequency can be continuously adjusted in the output state.

6. RS232 communication interface and special test software.

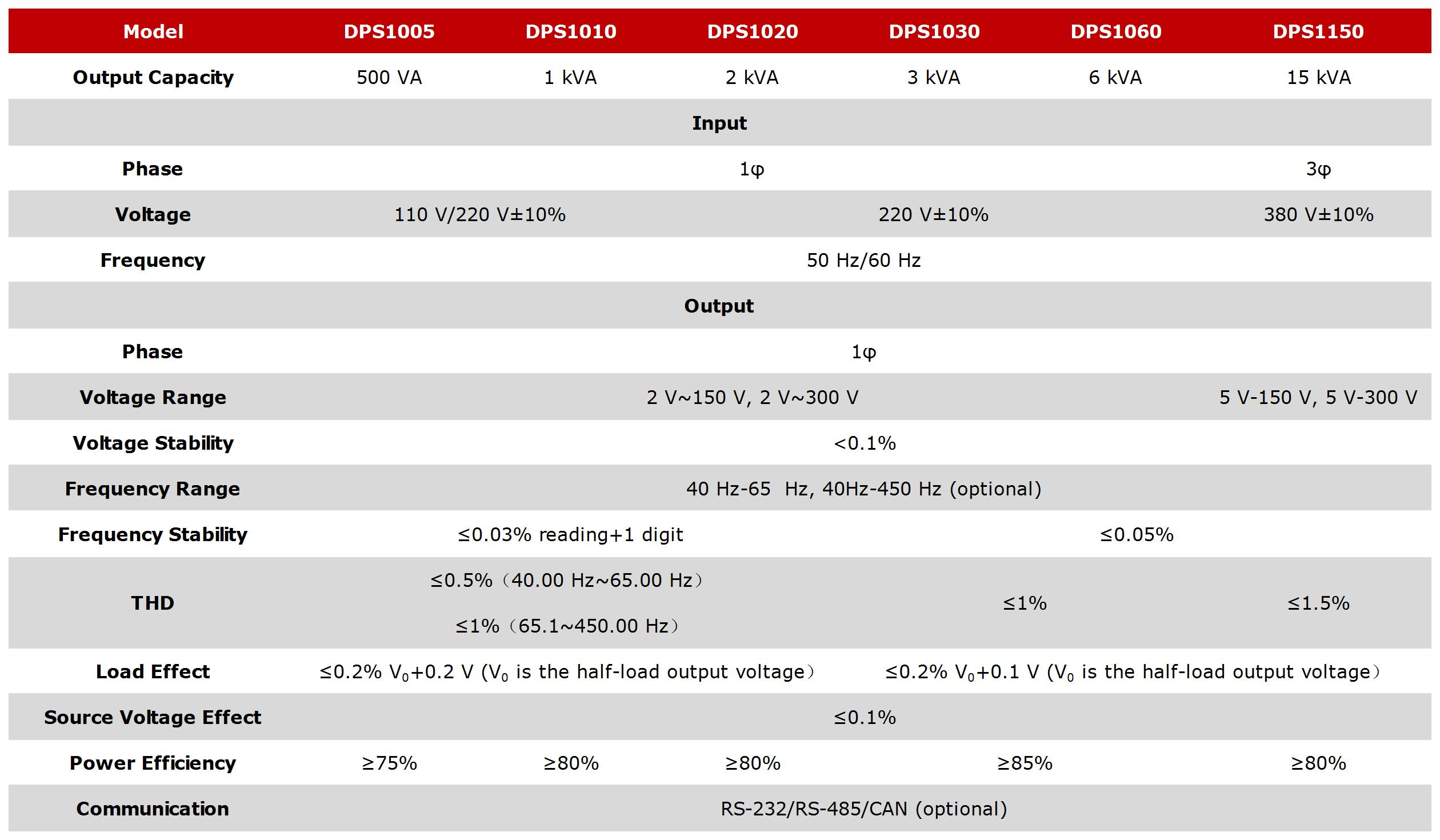

Technical Specifications
