PLM3000 LED전용 고주파 파워미터

Compliance with the requirements of LM 79 standard for measuring instruments Suitable for the Integrating Sphere System and Goniophotometer System

목록보기

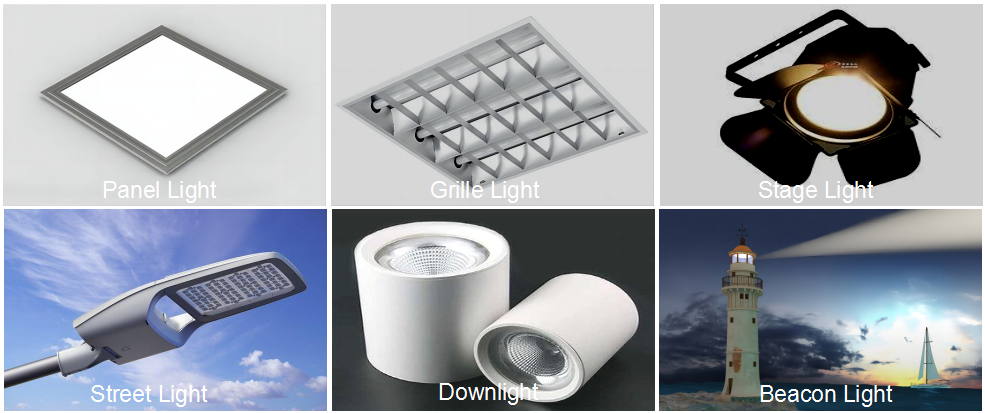

Typical Application Scenarios

This test ability includes not only basic electrical parameters, but also power and current integration, harmonic analysis, automatic measurement range switching, maximum value hold, data storage, screen capture and etc. functions. It comes with LAN and USB communication interface for USB export and software online upgrade.Besides, it could be configured into integration testing system of EVERFINE, such as Integrating Sphere System and Goniophotometer System which completely comply with LM-79-19 standard.

Main Characteristics

1. 10.1 inch color LCD display which can support buttons and touch operation.

2. Voltage/current test frequency bandwidth:DC, 0.1 Hz ~ 2 MHz.

3. 500 kS/s Sampling rate.

4. Independent DF(Displacement Factor) displays.

5. Harmonic analysis orders is up to 100 times.

6. Support numerical, waveform, and bar chart display.

7. Save and load frequently-used setting freely to improve the measurement efficiency for specific measurement object.

8. It comes with USB and LAN communication interface,supports USB export and software online upgrade.

9. Support SCPI communication protocol and provide Labview communication library.

10. Provide PC software(EPASuit) which can set the measurement conditions, obtain the measurement values and waveform data, and print the measurement report.

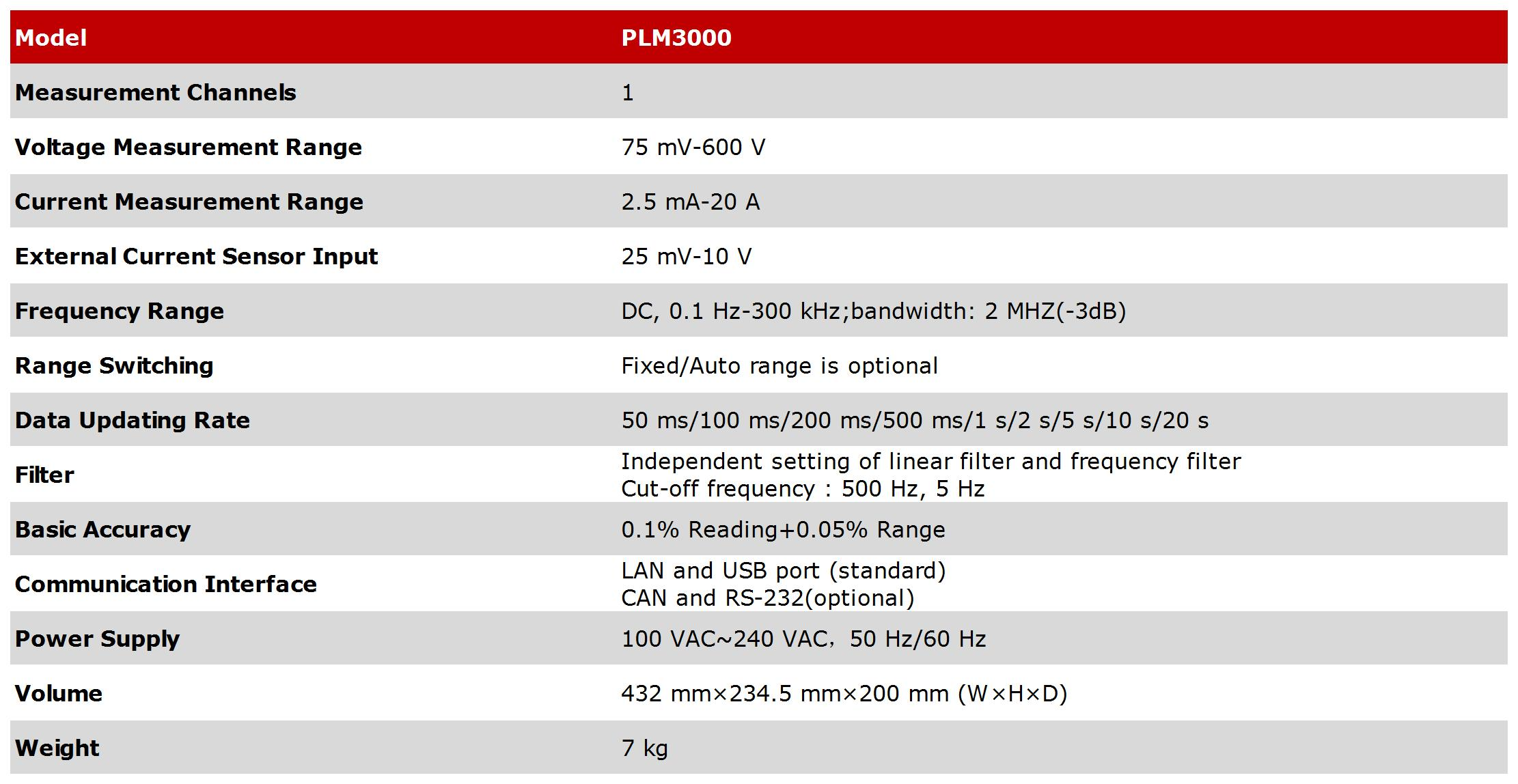

Technical Specifications
