RATS-2000 재귀반사 측정기

Meet the photometric and color measurement of the retroreflector

관측각: 0.2º ~ 2º

측정규격: ECE R3

조도범위: 10⁻⁶ ~ 2,000 lx

파장범위: 380nm-780nm

목록보기

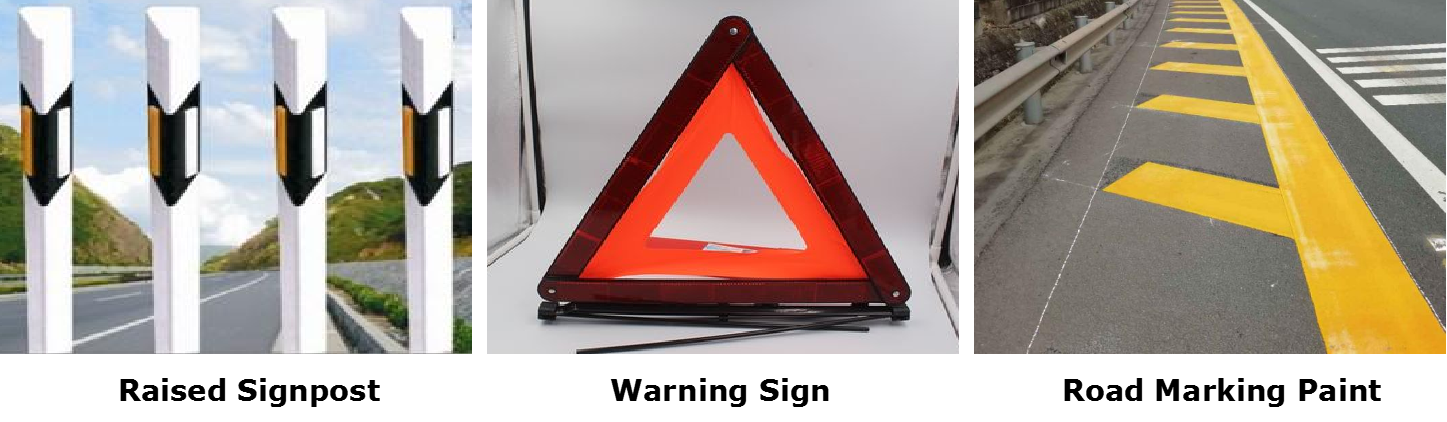

Typical Application Scenarios

RATS-2000 is used for testing the retroreflective color performance of various retroreflectors and is mainly composed of a transmission mechanism, a control box, a illuminated A light source, a weak-light illuminance meter, a turntable and other supporting devices, for various retroreflectors or retroreflective materials such as raised road signs, contour marks, broken down vehicle warning signs, road marking paint and other standard photometric and colorimetric performance testing. It fully meets the requirements of relevant standards such as GB, ECE, SAE, DIN, FMV, etc.

Main Characteristics

1. The testing distance is up to 100 feet, and can achieve accurate measurement of weak illuminance, with a minimum adjustable range of 10lx-8lx.

2. Continuous and adjustable observation in 0.2°-2° at the corresponding testing distance.

3. The console accuracy can reach 0.1mm, and the equivalent angle accuracy at a distance of 30.48 meters is better than 0.0002°.

4. Test the chromaticity of retroreflectors and road signs.

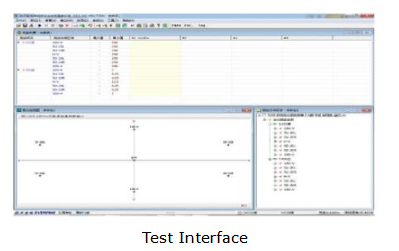

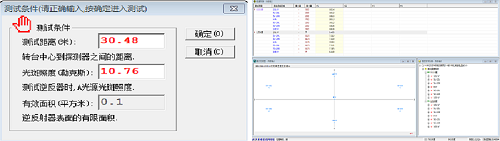

5. Test interface capture (HD5 software interface capture)

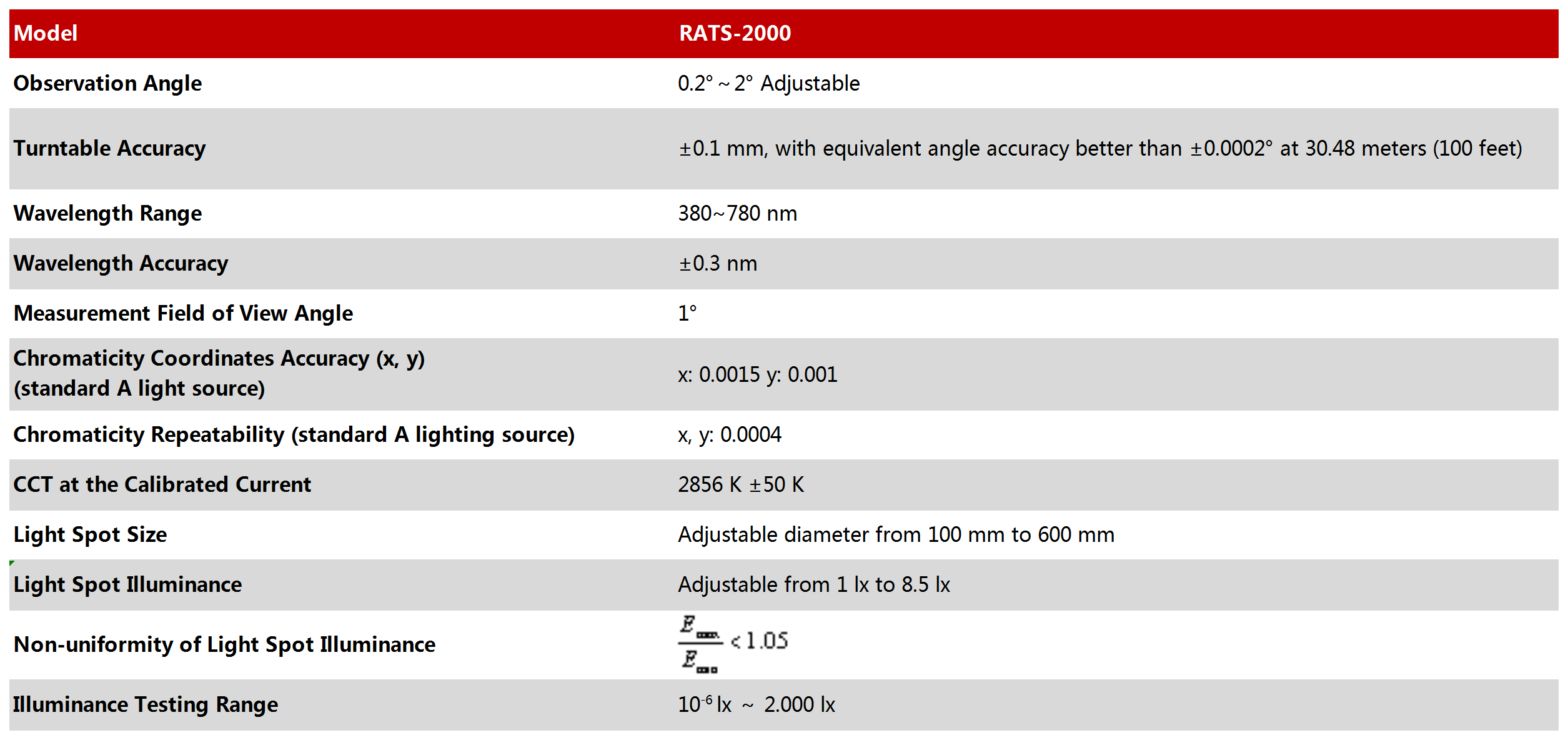

Technical Specifications
