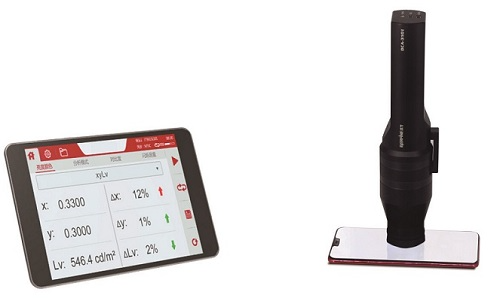

DCA-510 Display Color Analyzer

Test fast & Stable & accurate and portable.

목록보기

Typical Application Scenarios

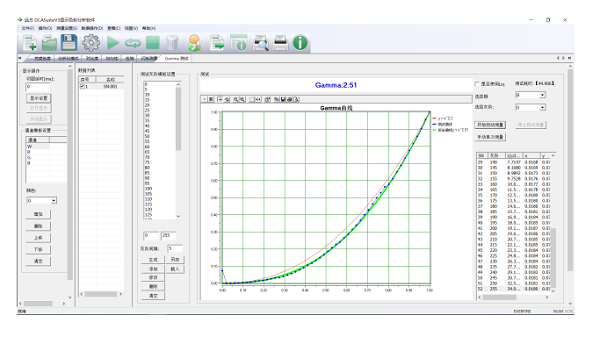

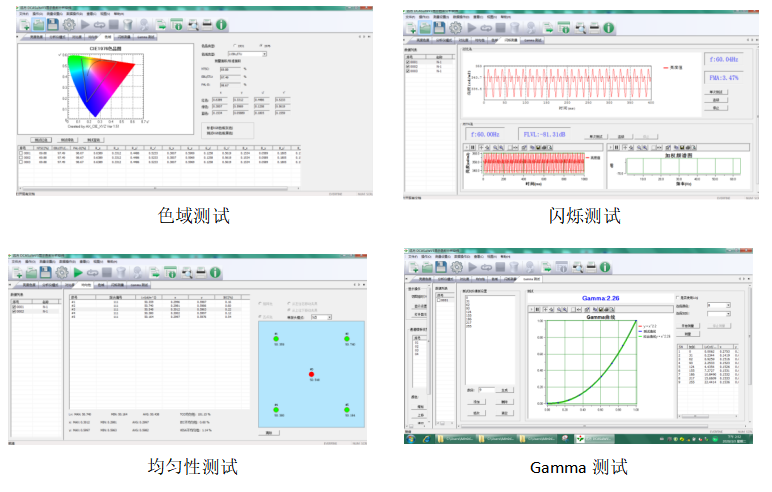

DCA-510 display color analyzer is specifically designed for mobile phones and tablets, and can be used with Windows tablets or computers to test screen luminance, chromaticity, Gamma, and flicker.

Main Characteristics

1.Portable

It can be directly connected to tablet or computer use, easy to operate, easy to use production line.

2.High sensitivity

The measurement sensitivity is high, which can meet the accurate measurement of low gray luminance and contrast of the display under OLED screen and low gray scale conditions.

3.High stability detector

Fast sampling speed reduces GAMMA automatic fast measurement time and improves production line measurement efficiency.

4.Advanced flicker algorithm.

It can be used for accurate measurement of transient characteristics such as flicker (contrast method, JEITA method)

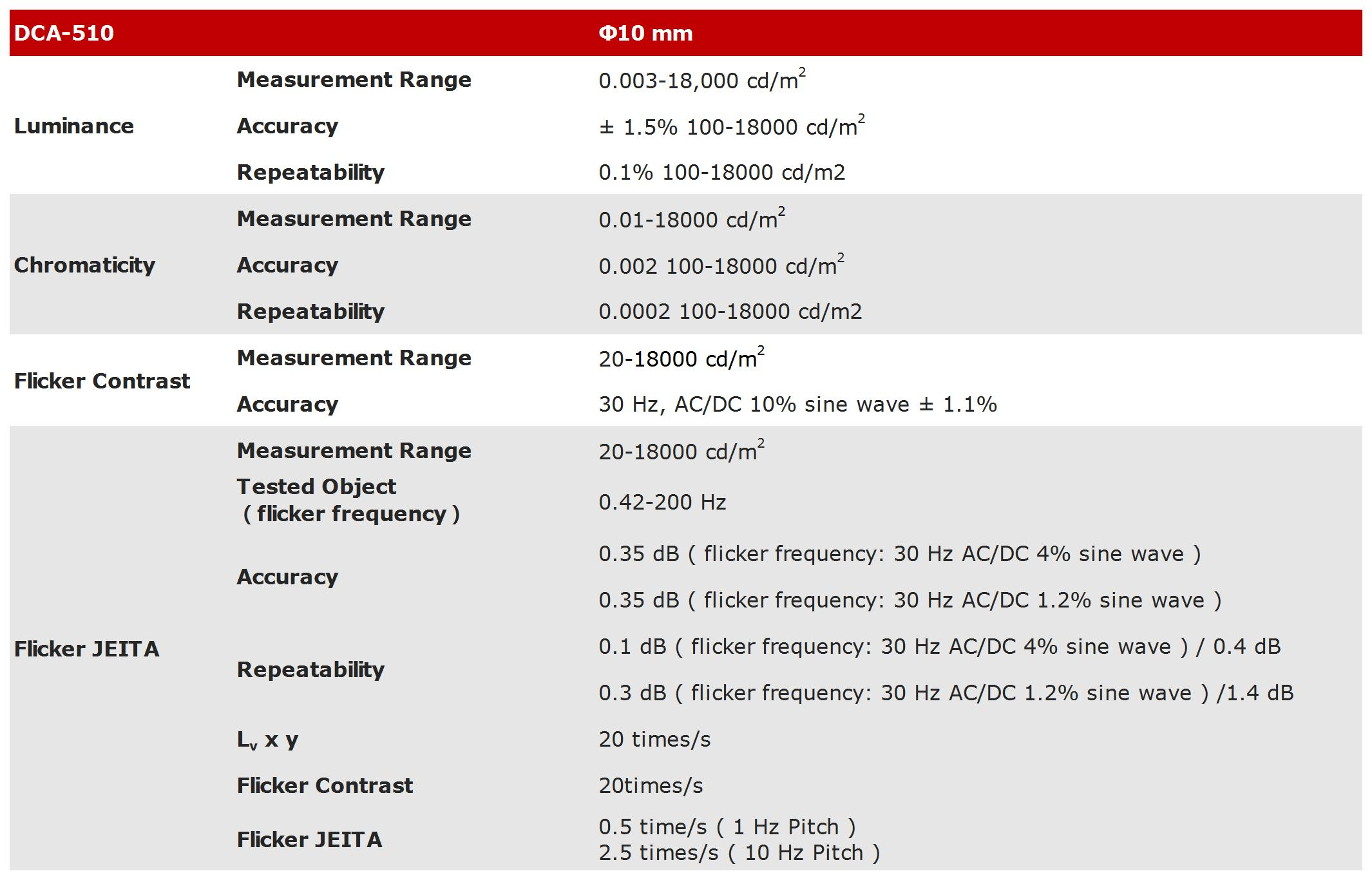

Technical Specifications
