TLS-75 분광조절 조도표준광원

Industry-leading spectral continuity Almost any target spectrum of 380~1000nm can be simulated output

파장범위: 380 ~ 1000nm

광원: CIE A, B, C, D50, D55, D65, D75, E, F1, F12, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

직경: 75mm / 조도범위 : 1 ~ 10,000 lx

균일도: 98.5%

목록보기

Typical Application Scenarios

TLS series spectrally tunable luminance source is mainly used for camera sensor calibration of mobile phones and watches

Main Characteristics

1.Easy Operation

TLS-75 adopts multi-channel LED, simulates typical indoor and outdoor light sources, and realizes automatic luminance adjustment within a large dynamic range，Typical Ra ≥99.

2.High reduction

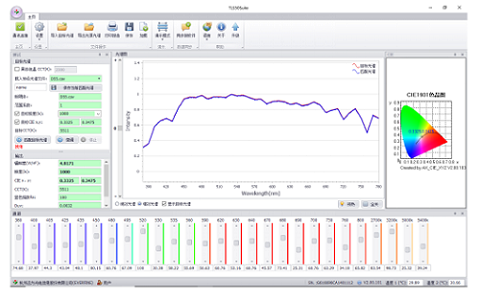

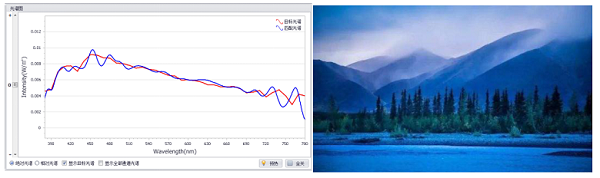

Built-in spectral curves, such as Class A light source, LED light source, D65 light source, etc., can also be imported into any spectrum for matching simulation, high matching degree, high real light environment restoration.

3.High uniformity

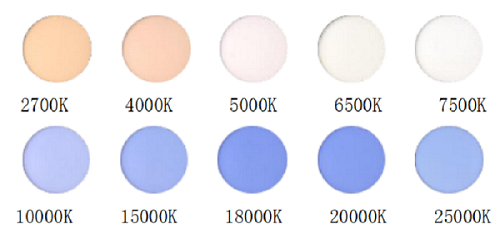

Built-in integrating sphere adopts EVERFINE patent diffuse reflection coating, built-in monitoring detector, real-time monitoring feedback, higher stability, better uniformity, accurate reproduction of color temperature in the range of 2000K to 25000K any color temperature light source, providing standard light source for camera and camera color balance correction.

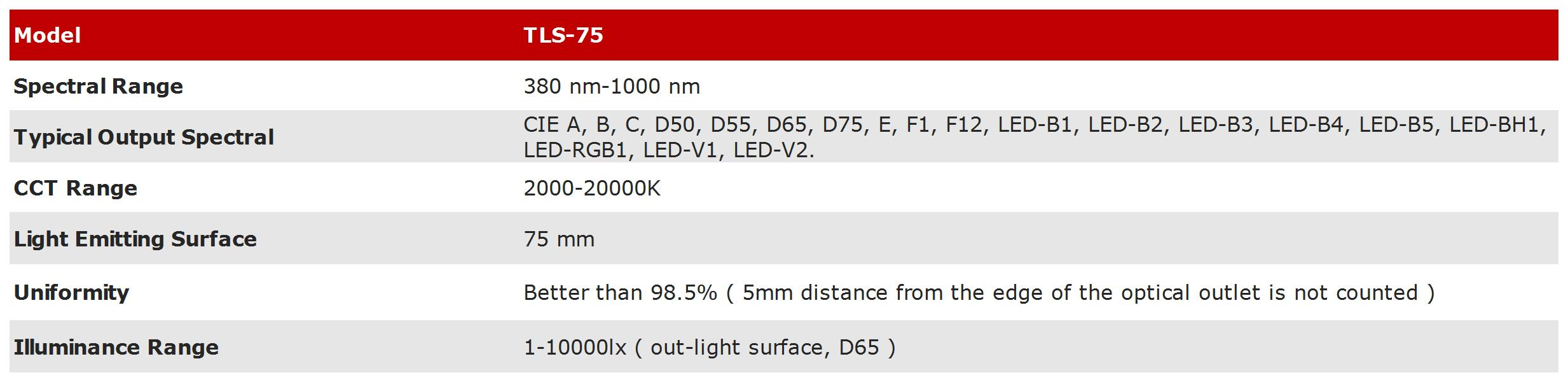

Technical Specifications
