DMS-8500 Optical Property Test System

High degree of automation, one time to complete all the tests Suitable for large flat panel displays

목록보기

Typical Application Scenarios

DMS-8500 optical property test system is mainly used to test the luminance, chromaticity, uniformity, viewing Angle and other conventional Photometric & Chromaticity characteristics test, instantaneous characteristics and other parameters test of TV, educational screen, conference screen and other large size flat panel display, referring to IDMS, VESA, IEC, TCO and other domestic and international standards test requirements.

Main Characteristics

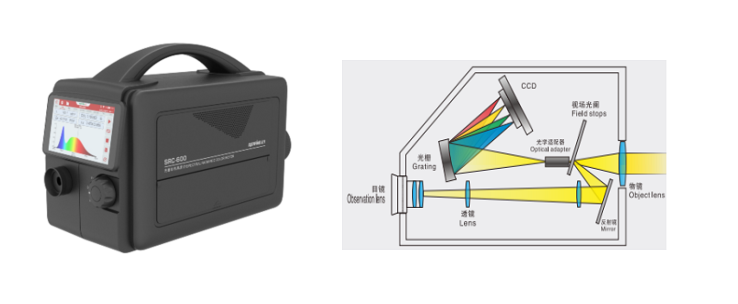

1.Integrated spectrum, luminance, chromaticity measurement

Equipped with high-precision Spectral Radiance Colorimeter, luminance, spectrum and chromaticity measurement functions in one, the highest sensitivity of up to 0.0005 cd/㎡, low luminance can also maintain excellent accuracy and speed, is the standard machine for luminance and chromaticity measurement.

2.Automation

Precision multi-axis rotation device, mechanical rotation, high positioning accuracy, can achieve the display Angle of view, uniformity and other characteristics of accurate testing;

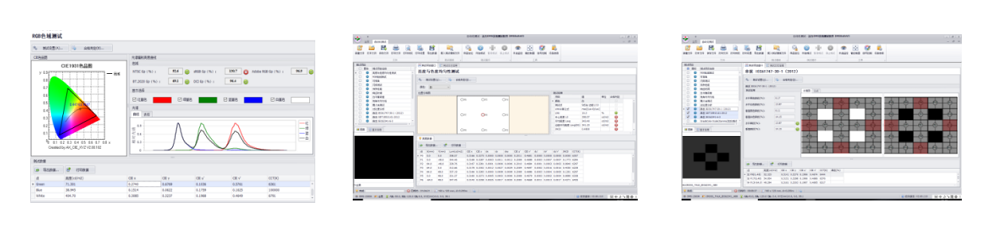

3.Powerful software

It can realize luminance uniformity, chromaticity uniformity,  chromaticity coordinate , relevant color temperature, color gamut area, color gamut coverage, visual Angle, response time (rise time, drop time), contrast, black and white window luminance contrast,flicker, crosstalk, etc.;

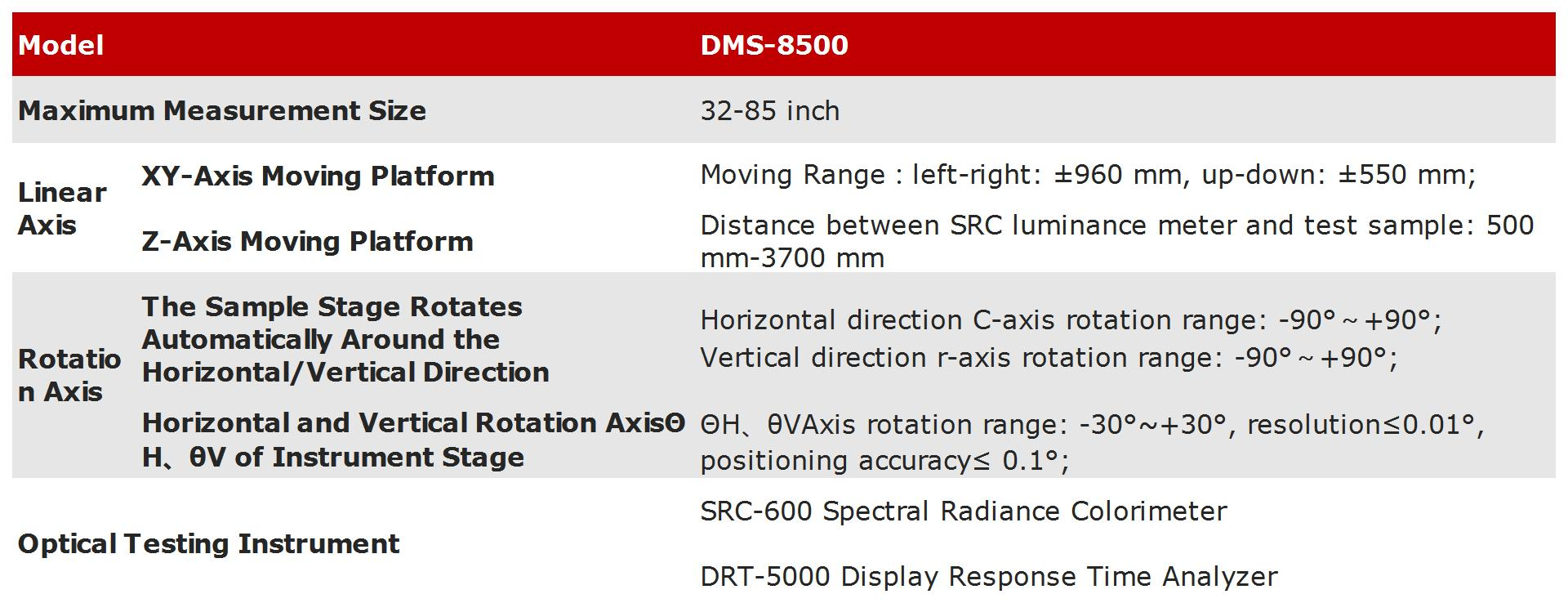

Technical Specifications
