SRC-600 분광 점휘도계

Standard machine for light and color measurement Excellent accuracy and speed are maintained even at low brightness

파장범위: 380 ~ 780nm

측정범위: 0.0005 cd/m2 ~ 600,000 cd/m2

목록보기

Typical Application Scenarios

SRC-600 is a high-precision spectral radiance colorimeter developed by 30 years optical radiation measurement technology reserve of EVERFINE. The insturment combined with precision optical design and high-performance electronic signal processing technology. It integrates spectrum, luminance and chromaticity measurement functions, and maintains excellent accuracy and measurement speed even at low luminance.

Main Characteristics

1.Integrated spectrum, luminance, chromaticity measurement

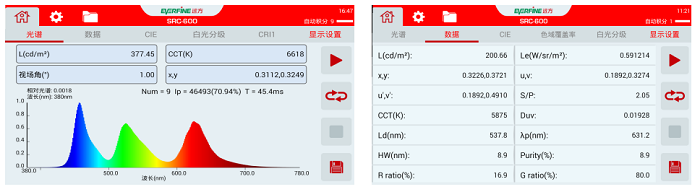

SRC-600 Spectral Radiance Colorimeter can measure the parameters including luminance, relative spectral power distribution, chrmoaticity coordinate, CCT, color rendering index, etc., covering the photometric and colorimetric parameters of the measured object, truly achieve a multi-purpose machine.

2.Wide measuring range

Without an attenuator, the luminance measurement range is 0.0005cd/m2 ~ 600,000cd/m2, and an ultra-wide range of 10E8 orders can be achieved without an attenuator to meet the needs of high contrast measurement

3.High measurement Speed&Accuracy&Resolution

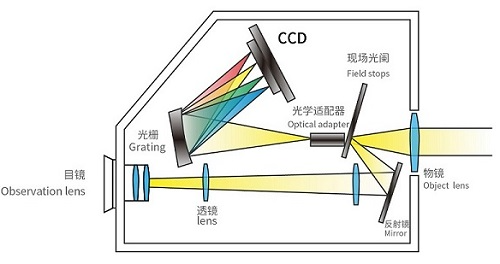

SRC-600 uses a constant temperature cooling array detector, there is no V(λ) mismatching error, and the stray light impact is minimal, guarantee the high accuracy measurement, while the pixel cooling detector has a resolution of 0.6nm/pixel, and provides millisecond measurement speed.

4.Multiple FOV switching

According to different applications, choose different optical measurement angle 1°, 0.2°, 0.1°. Multi-field angle switch. can be applied for small devices such as indicator light, instrument panel measurement, and can also be used for outdoor LED display and other large size luminous body measurement.

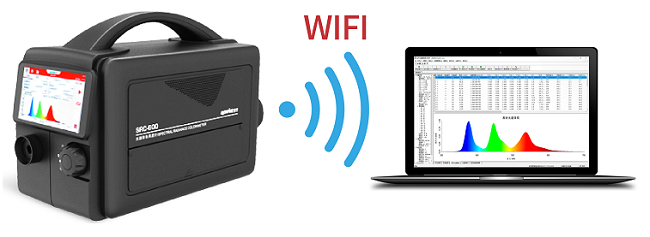

5.WIFI remote control function

WIFI remote communication, provides a convenient way for remote measurement and data transmission. User can select remote control function under WIFI communication.

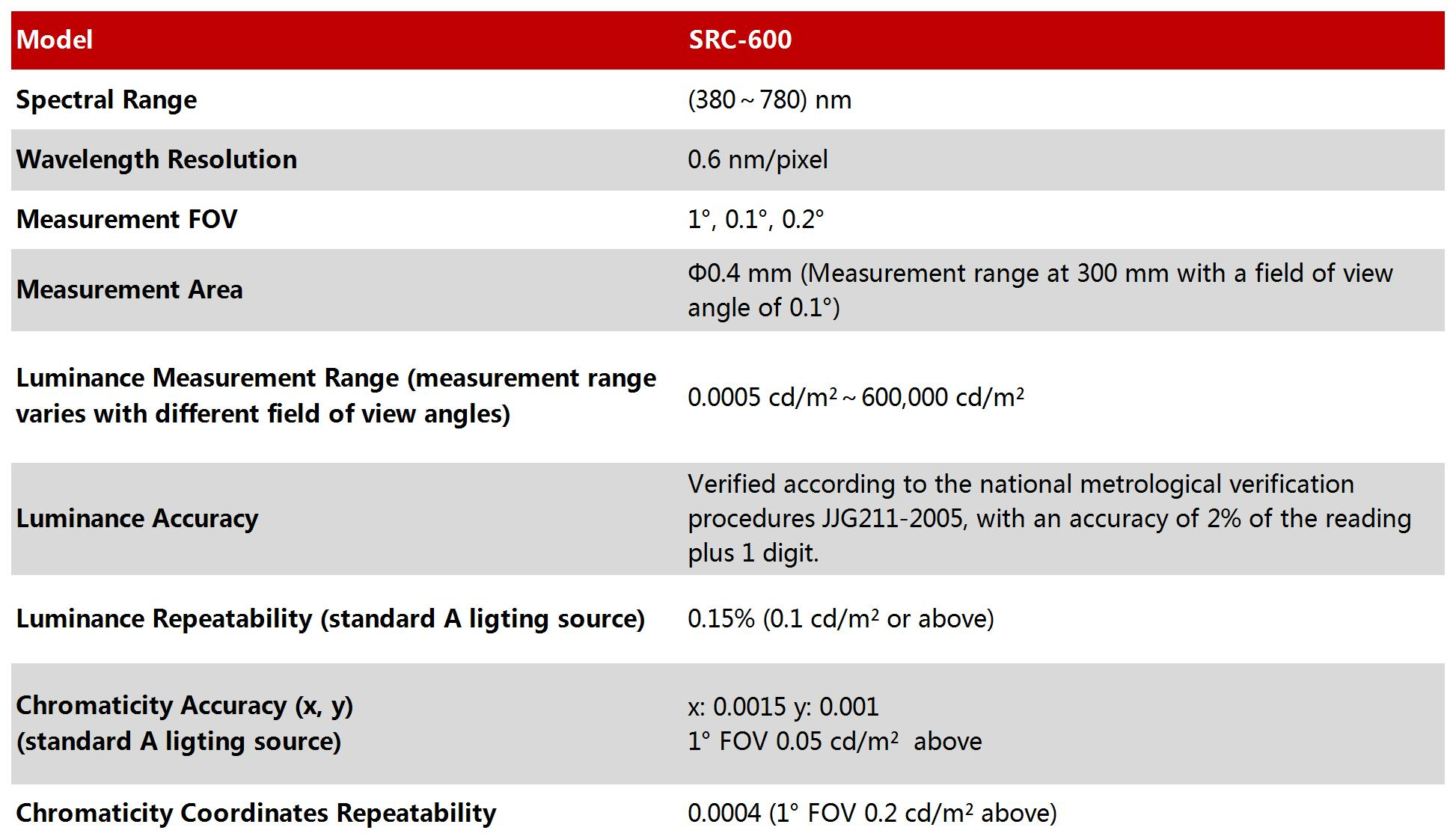

Technical Specifications
